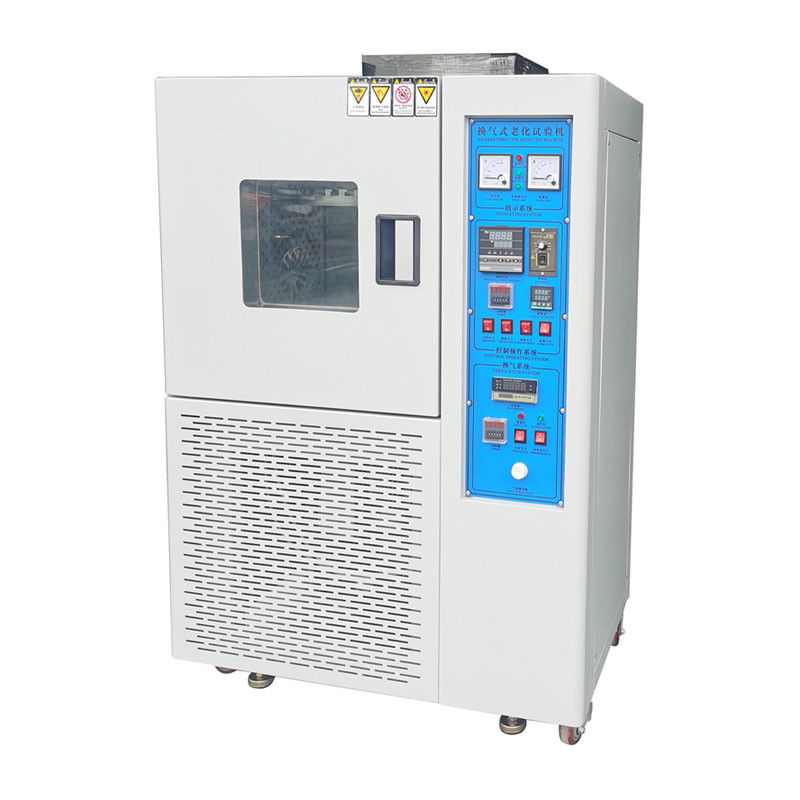

Wire And Cable Environment Test Chamber Ventilated Aging Test Chamber

Wire and Cable Ventilated Aging Test Chamber Breathable Aging Test Chamber
1. Use
The ventilation aging test machine uses the intensity ventilation method to affect the physical properties of the specimen, the body structure is sealed and insulated, and is equipped with an electricity meter to calculate the electricity consumption ventilation constant. Specially used for rubber and plastic aging testing machine, product design meets UL requirements.
Ventilation aging test box is widely used in laboratories, laboratories, electronics, hardware, optoelectronics, plastics, molds, shoes, spraying, printing, aerospace and other industries.

2. Features

1. SECC steel plate and fine powder paint treatment are used outside, SUS stainless steel is used inside;
2. New high temperature resistant long shaft motor
3. Turbofan
4. Silicon packaging
5. Over temperature protection: overload automatic power off system
6. Circulation mode: forced horizontal air supply circulation
7. Heating mode: PID+S.S.R
8. Temperature range; Indoor degree +20-260 degrees; Note: Temperature adjustable
9. Temperature controller: PID microcomputer control
10 timer: the temperature to the timing, timing off the heating power supply
11. VA2-101 and VA2-150 are equipped with glass Windows, VA2-270 and above models do not have glass Windows.
14. There are air intake and exhaust devices
15. High temperature protection and overcurrent protection

3.Product Parameter
