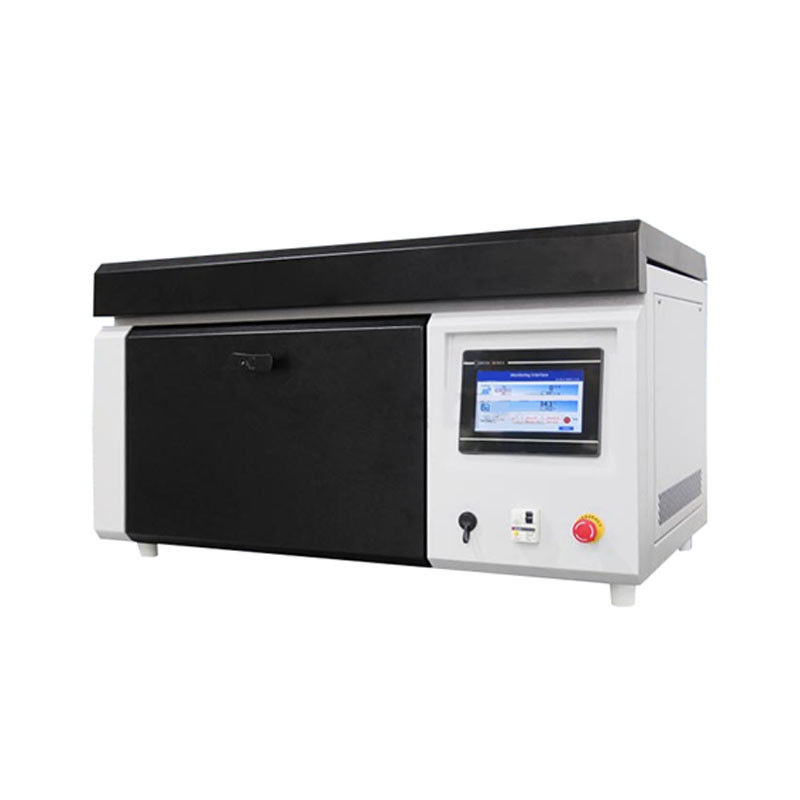

Desktop Xenon Arc Test Chamber Weathering Accelerated Aging Climatic Test Chamber

Desktop Xenon Arc Test Chamber Weathering Accelerated Aging Climatic Test Chamber
Desktop Xenon Arc Test Chamber Weathering Accelerated Aging Climatic Test Chamber

Large Image :  Desktop Xenon Arc Test Chamber Weathering Accelerated Aging Climatic Test Chamber

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: ISO CE ASTM
Model Number: LR-C521
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 200 Pieces

Desktop Xenon Arc Test Chamber Weathering Accelerated Aging Climatic Test Chamber

Description
Lamp Rated Life: 1500h Maximum Current And Power: 125A-3.5KW
Net Weight: 93KG (including 130KG Packing Wooden Case) Power Supply: 220V, 50 Or 60HZ (choose One Of The Two)
Highlight:

Desktop Xenon Arc Test Chamber

,

Desktop Accelerated Aging Test Chamber

,

Desktop Climatic Test Chamber

Desktop Xenon Arc Weathering Accelerated Aging Climatic Chamber
1. Key performance characteristics
Benchtop xenon lamp aging test chamber conforms to the international standard of full spectrum xenon lamp, the most realistic reproduction of natural full spectrum sunlight, air cooled lamps, more economical, more efficient, easier to maintain.

2. Filters
Filters were chosen to model a variety of environments, including direct sunlight and glass window transmission. Filter performance does not degrade over time, so there is no need to replace the filter during normal operation. Xenon lamps have a long service life of up to 1500 hours, are cheap and easy to replace bulbs.
Alarm protection function: over temperature, large irradiance error, open door protection.



3. Product Parameter

Model

LR-C521

light source

1.8kW air-cooled xenon lamp

filter

UV extension filter (daylight filter or window glass filter is also available)

Effective exposure area

1000cm2 (9 150mmx70mm samples can be put in at a time)

Lamp rated life

1500h

Irradiance setting range

30W/m²~100W/m²(300nm~400nm)

Irradiance monitoring method

340nm or 420nm or 300nm~400nm (choose one before ordering)

Blackboard temperature setting range

Room temperature +20°C~90°C (varies according to the ambient temperature and irradiance setting)

Inner/outer cabinet material

All stainless steel plate 304/sprayed

Dimensions

950mmx570mmx540mm (LxWxH)

net weight

93KG (including 130KG packing wooden case)

power supply

220V, 50 or 60HZ (choose one of the two)

Maximum current and power

125A-3.5KW
