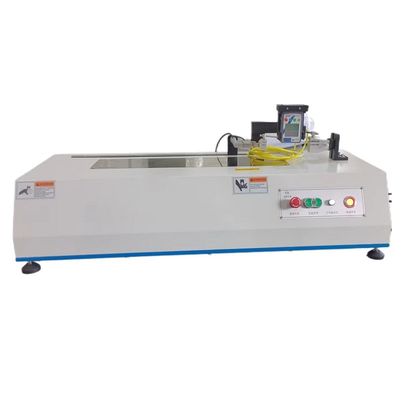

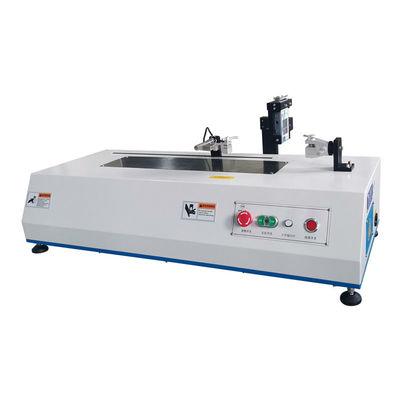

Horizontal Type Tensile Strength Testing Equipment Protective Film Tear Film Voltage Tester

Motion control mode

 5-inch touch control

 Test angles

 180 degrees

 Voltage reading mode

 Infrared voltage tester digital display reading

 Signal Detection Method

 Oscillation

 Indicates the frequency of data updates

 0.5 seconds at a time

 The usual way

 10V~19.99kV I.

 Way B

 1V~1999V

 Test distance

 30mm (between the measured and detection sections)

 Test distance adjustment

 Red LED light focus type (30mm focus distance of light mark)

 Head turn angle

 180 degrees (45° handles each)

 Representation Department

 Backlight encapsulates LCD display

 Polarity indication

 + Polarity - Polarity indication

 Switch mode

 MODE button transition

 Battery check

 Indication part remnant indication

 power supply

 DC9V alkaline angle type dry battery

 Operating temperature

 0~40ºC

 Solid size

 68×22×138mm(W×D×H)

 weight

 230g (including battery)

 fittings

 Dedicated ground wire, 9V battery, box

 Measure speed

 100-10000mm/min adjustable

 Valid itinerary

  500 mm

 Specimen width

 50mm

Downtime mode

The upper and lower limits are set safely, and the breakpoint of the specimen is sensitized

 Motor driven

 Delta servo motor + Delta servo drive

 Machine drive

 Ball screw + linear guide

 Machine power

 400W

 Dimensions of the machine

 1363mm(W)×420mm(D)×850mm(H)

 Use a power source

 220V 50Hz

 Standard configuration

 A set of fixtures, a power cord, and a manual

 remark

 Please note that the oscillation type is very sensitive to shocks such as falling, and should not be used with strong impacts.
