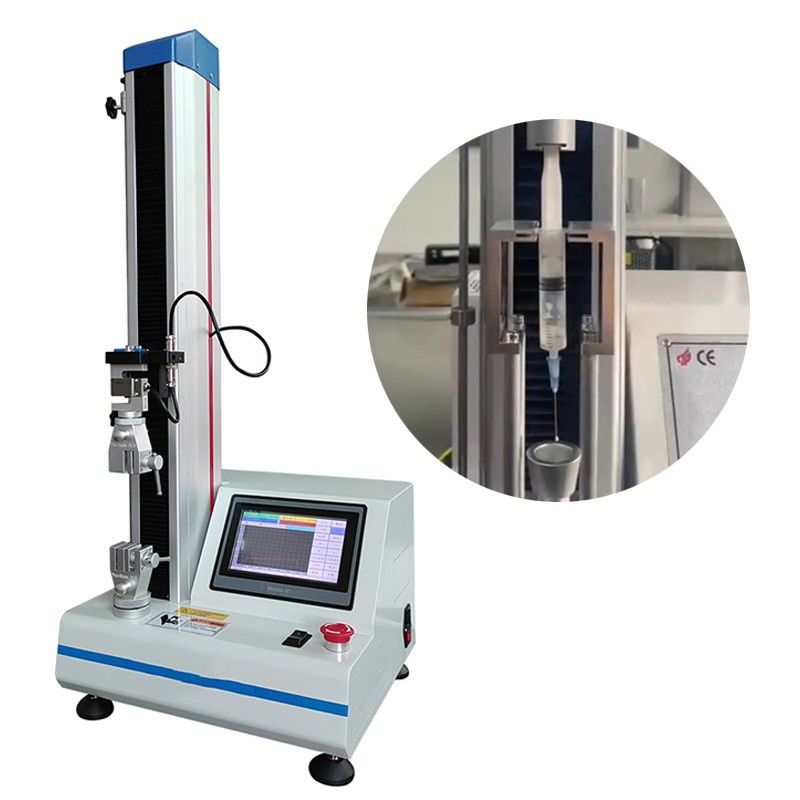

ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures

ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures
ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures

Large Image :  ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: P-U90
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures

Description
Power Supply: 220V 50~60HZ Machine Size: 40×37×95cm (width×depth×height)
Power: 100W Machine Net Weight: 28KG
Highlight:

Syringe Push Out Test Machine

,

Syringe Force Test Machine

,

Force Test Machine 100W

ISO 11608 Syringe Push-out Force Test Machine
1. Introduction
The pushout force testing machine is equipped with professional special fixtures, which can complete different tests of syringes. Through the detection, it can effectively monitor whether the quality of syringes meets the requirements, and provide the corresponding detection basis for improving and optimizing the production process.
Purpose: This machine is suitable for force testing of various syringes. The instrument can be used to test the extraction force strength, compression force, extraction force and puncture force of the syringe with the extraction force jig, extraction force jig and puncture clamp
2. Product Paramter
Compliant standards: ISO 11608-3-2022

Item P-U90
Capacity (MAX) 1KN (force sensor in the range of 10N~1KN is optional)
Control method Fully computer controlled, powerful software
Force unit N, kN, gf, kgf, lbf, kP, tf(SI), tf(long), etc.
Length unit mm, cm, Inch, m, km, um, etc.
Force resolution 1/500,000
Accuracy ±0.1%
Stroke resolution 1/500,000mm
Accuracy ±0.1%
Effective stroke 450mm; (customizable)
Speed range 0.01~500mm/min; (customizable)
Test space Diameter Φ115mm
Stop mode

Overload stop, emergency stop button,

automatic stop when specimen is damaged,

automatic stop when upper and lower limit settings are set;
Machine power Servo motor drive
Machine size 40×37×95cm (width×depth×height)
Machine net weight 28KG
Power 100W
Power supply 220V 50~60HZ
Machine equipment 1 USB communication cable, 1 software
Optional accessories Push-out force fixture, etc.; (different fixtures can be purchased according to different test standards)
