Product Details:
|
Power: | 2000w | Packing Weight: | 55KG |
---|---|---|---|
Coating Width: | 300*450M | Coating Accuracy: | ±0.0025mm |
Highlight: | Knife Coating Test Machine,Coating Test Machine 2000W,Film Coating Machine 2000W |

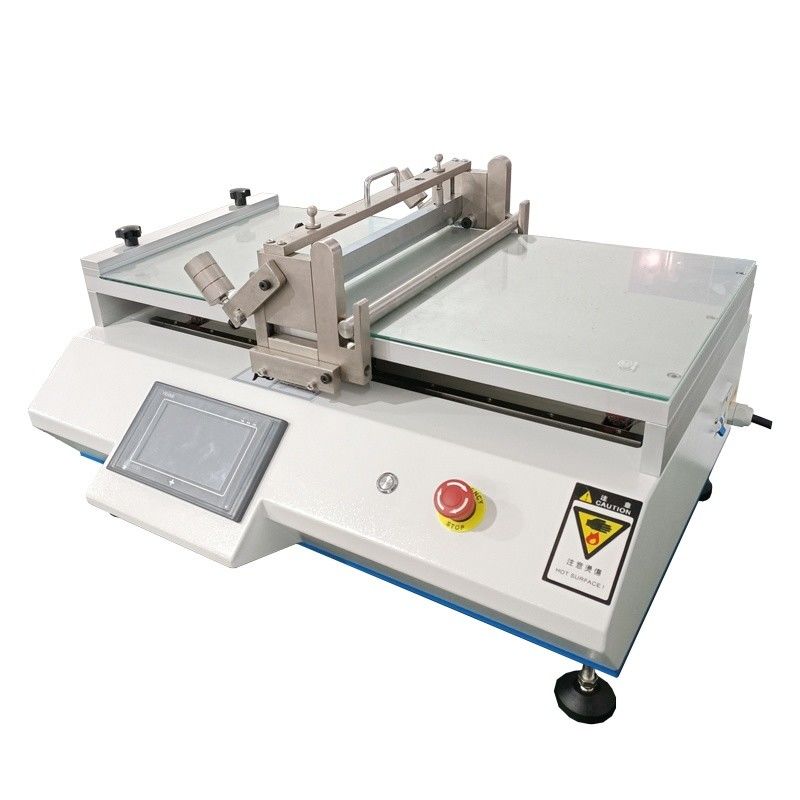

Heated Knife Coating Test Machine Film Coating Machine
1.Application
Since the main factors affecting the coating are coating speed and pressure applied to the coating applicator, the coatings applied manually often have inconsistencies, especially between different people, which makes it difficult to compare the test results between samples. Our company's automatic coating applicator is carefully designed to enable operators to easily apply precise wet films on different substrates, which greatly improves the reproducibility of the coating.
The laboratory small coating machine uses all imported accessories and is inexpensive. It has been favored by many multinational corporate R&D institutions and many well-known universities at home and abroad.
The coating effect is guaranteed by controlling the speed and stable pressure to ensure the uniformity and stability of the coating.
The biggest feature of the laboratory small coating machine is that it can be used for coating experiments on various flat materials such as paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate, etc.
2. Product Parameter
Control system | 5-inch PLC touch screen |
Coating thickness | 0.005-3mm wet film |
Coating accuracy | ±0.0025mm |
Power supply | 220V 50Hz |
Power | 2000w |
Coating speed | 0-10m/min (digital preset) |
Length | Digital preset |
Coating width | 300*450M |
Heating temperature | Normal temperature~160 degrees (constant temperature setting) |
Coating method | Scraper/wire rod alternate use |
Scraper material | Carbide scraper (easy to disassemble and clean) |
Packing weight | 55KG |
