Multi Functional Turntable Taber Abrasion Resistance Tester Rotational Abrasion Tester

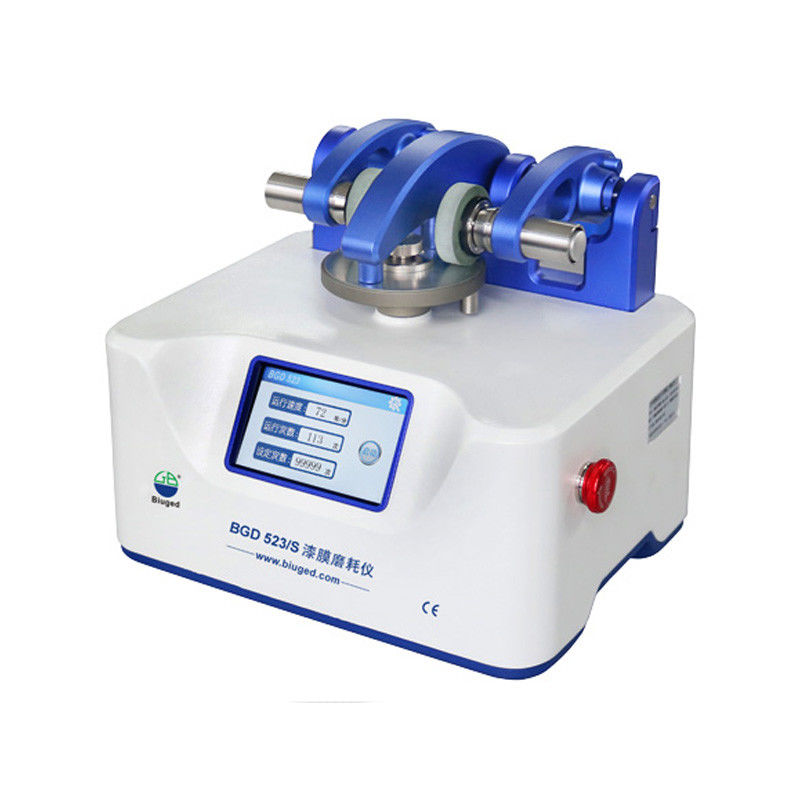

BGD 523/S Turnable Abrasion Tester Taber Rotational Abrasion Device

1.Description:

BGD 523/S is a multi-functional paint film/wood abrasion tester newly designed by our company. This product complies with standards such as ISO 7784-2, ISO 9352, GB/T 1768, ASTM D 3884, ASTM D 1175, etc. It features convenient operation, novel appearance, stable performance, accurate and reliable test data, and can be comparable to similar foreign products.

The working principle of this instrument is as follows: Place the material to be tested on the turntable, and two grinding wheels press against the material with a certain weight to cause it to be worn. The grinding wheel rotates along with the sample disk, generating relative motion and wear. During the rotation process, the offset of the grinding wheel shaft relative to the disk shaft causes sliding motion, thereby wearing down the material. When a sample with an area of 10cmx10cm is subjected to wear, its surface material is worn by full-angle particles or filamentous substances to form a complete ring. This can simulate real usage conditions or meet the test conditions stipulated by the standards

The BGD 523/S abrasion tester is mainly applicable to products with test planes, such as: Suitcases, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal plating layers, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, elastic floor MATS, traffic paints, anodized layers, blankets, electronic components, decorative boards, waxes, labels, leather cases, dental materials, automotive interior decorations, resins, furniture, etc.

Performance characteristics

◆ The color touch screen operates and displays various parameters, which is intuitive, simple and convenient

◆ A variety of different abrasive media and accessories can be selected for different tests

◆ The workbench can be replaced to be compatible with the wood abrasion test (the maximum thickness of the test board can reach 25mm)

◆ Two rotational speeds (60 revolutions per minute or 72 revolutions per minute), 0- 99,999 revolutions and three types of loads can be set. Ensure the stability and accuracy of the test.

◆ Strict product quality control before leaving the factory ensures reliable test results.

◆ A device for quickly loading and unloading worn grinding wheels

◆ The selected grinding wheels and abrasives undergo strict quality control, featuring high quality and good stability

◆ Equipped with a vacuum cleaner to remove grinding debris

◆ The height of the vacuum suction nozzle can be precisely adjusted to accommodate samples of different thicknesses

◆ The support arm and the fixed sleeve of the wear wheel have undergone calibration and balancing treatment

◆ Precise stainless steel weight-bearing weights

◆ It is standard-equipped with the original imported S-11 grinding wheel pre-grinding sandpaper of TABER Company to ensure the comparability of the test results of each time.

◆ A pair of original imported TABER CS-10 or CS-17 grinding wheels are standard.

◆ The instrument supplies power to the vacuum cleaner. When the test starts and stops, the vacuum cleaner starts and stops simultaneously.

◆ Equipped with an emergency stop switch

2.Technical Parameter
