BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor

BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor
BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor
BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor

Large Image :  BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: BGD 305/306
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 pieces
Contact Now

BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Impact Device Elastic Impactor

Description
Instrument Scale Length: 0-100cm（40inch） Die Inside Diameter: Ф 16.3mm/Ф 27 Mm
Graduation: 1cm Certification: Includes Calibration Certification
Warranty: 1 Year
Highlight:

astm paint testing equipment

,

astm paint testing instruments

,

tester paint testing equipment

BGD 305/306 ASTM D 2794 ISO 6272 Impact Tester Heavy Duty Lmpact Device Elastic Impactor

1.Description:

The BGD 306 elastic impactor and the BGD 305 heavy impactor are respectively in accordance with GB/T 20624.1 "Rapid Deformation (Impact resistance) tests for Paints and varnishes - Part 1: Drop hammer test (Large Area punches)" and GB/T 20624.2 "Rapid deformation (Impact Resistance) tests for paints and varnishes - Part 2: Designed in accordance with the "Drop Hammer Test (Small Area Punch)" standard and other relevant international standards. Compared with traditional paint film impact testers, both of these impact meters are equipped with a variety of heavy hammers of different weights and punches of different diameters. Through different combinations, they simulate the impact resistance of coatings in various application scenarios, making them more suitable for a wider range of industries and applications.

2.Technical Parameter



Ordering Information →

Technical Parameter↓

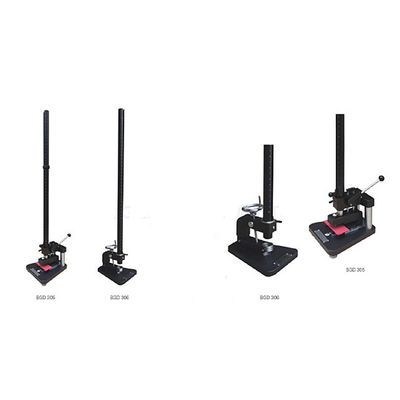

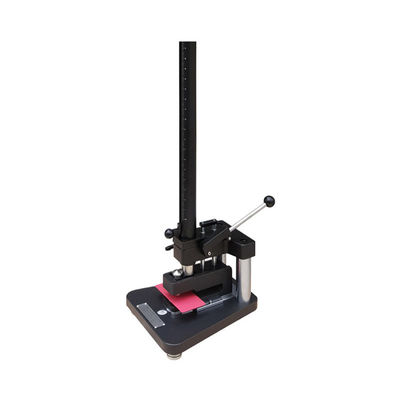

BGD 305

Heavy-Duty Impact Tester

BGD 306

ISO Impact Tester

Features

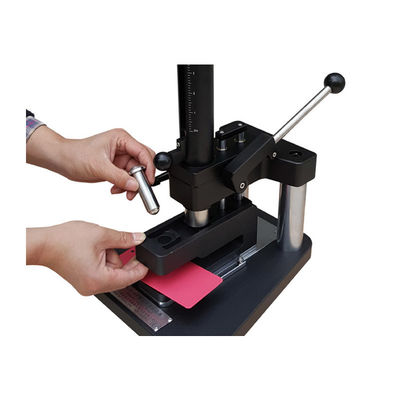

◆ Latest design make changing punch,weight and die become more easy and faster.

◆ The aluminum oxid guide tube is produced by special technology, never fade and rust.

◆ Special structure design make impact groove won’t deviate forever, no calibration.

◆ Come with Calibration Certificate.

◆ Ring slot(stops) for height limitation, convenient for operator to adjust different impact depth.

◆ The aluminum oxid guide tube is produced by special technology, never fade and rust.

◆ Guide tube is produced by special mould, the gap with weight is controlled precisely.

◆ Come with Calibration Certificate.

Instrument scale length

0-100cm(40inch)

Graduation

1cm

Falling Weights

1000g(2 pcs)
300g(1 pc)

2 lb(2 pcs)

Main weight with indenter:1000g(1 pc)

Additional weight:1000g(1 pc)

Additional weight:2000g(1 pc)

Indenter Diameter

Ф 12.7mm(1/2 inch)

Ф 15.9mm(5/8 inch)

Ф 20 mm

Die inside Diameter

Ф 16.3mm

Ф 27 mm

Standards

ASTM D 2794

ISO 6272.2

ISO 6272.1
