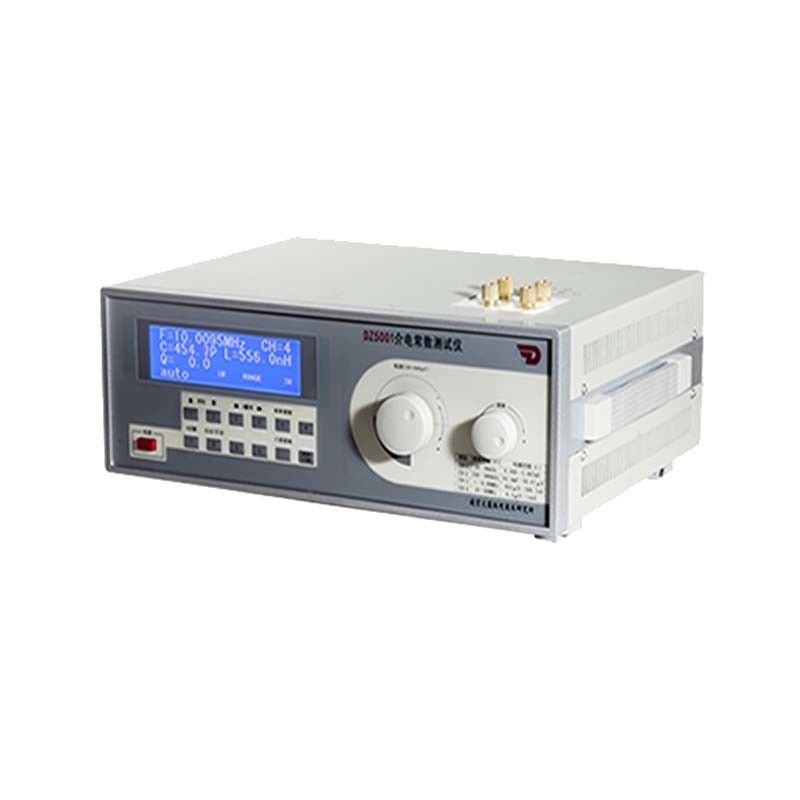

Constant Dielectric Loss Tester Dielectric Permittivity Conductivity Test Machine

Dielectric Constant Dielectric Loss Tester Dielectric Permittivity Conductivity Test Machine

1. Product introduction
Dielectric loss and permittivity are important physical properties of various metal oxides, plates, porcelain (pottery), mica, glass, plastics and other materials.
The factors affecting dielectric loss and dielectric constant can be further understood by means of deterministic method, which provides a basis for improving the performance of materials.
Scientific research institutes, schools and factories spend time studying the properties of new inorganic metal materials, according to the Science Foundation.

2. Unique technology
The instrument automatically deducts residual inductance and test lead inductance.Greatly improve the measurement accuracy.
Large capacitance value directly measured display.
Digital micromeasurement device, direct reading value.
With reference to national standard
GB/T 1693-2007

3. Application scope

Measurement of dielectric constant and dielectric loss coefficient of insulating materials (loss Angle tangent value)
Signal source	DDS digital synthesis 10khZ-70mhz
Regulating capacitance	main capacitor 30-500PF
Adjust capacitance error and resolution	±1.5P
Measuring range	1-1000 automatic/manual range
Measurement error	<5%
resolution	4 significant digits, resolution 0.1
