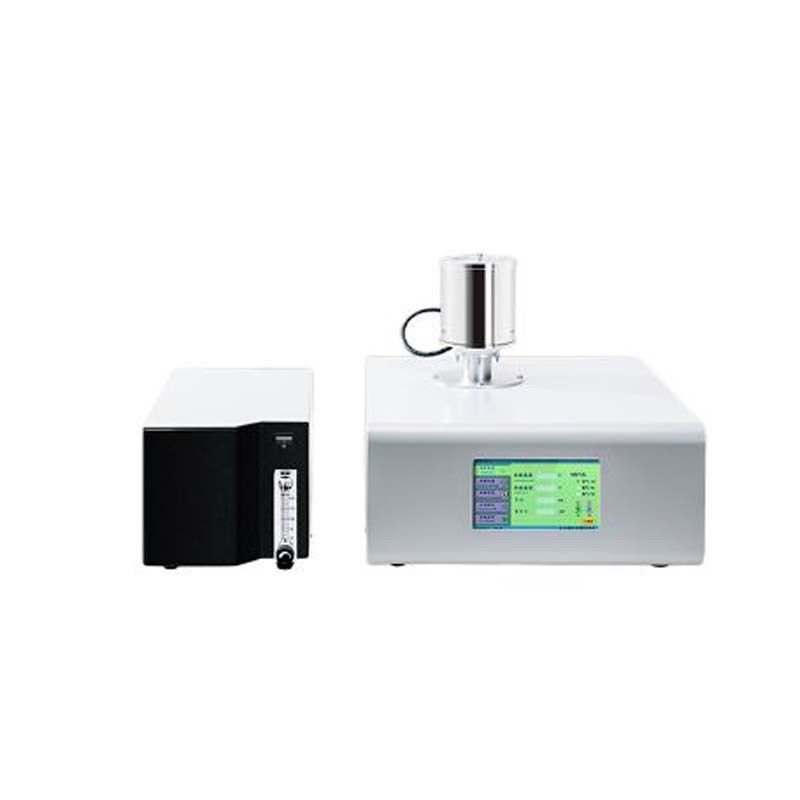

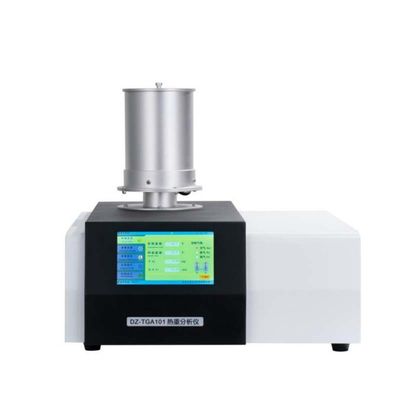

TG TGA Thermogravimetric Analyzer AC220V 50Hz Thermogravimetric Analysis Instrument

TG TGA Thermogravimetric Analyzer AC220V 50Hz Thermogravimetric Analysis Instrument
TG TGA Thermogravimetric Analyzer AC220V 50Hz Thermogravimetric Analysis Instrument TG TGA Thermogravimetric Analyzer AC220V 50Hz Thermogravimetric Analysis Instrument

Large Image :  TG TGA Thermogravimetric Analyzer AC220V 50Hz Thermogravimetric Analysis Instrument

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-TGA-103
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 5-8 work days
Supply Ability: 200
Contact Now

TG TGA Thermogravimetric Analyzer AC220V 50Hz Thermogravimetric Analysis Instrument

Description
Temperature Range: Room Temperature ~1450ºC Heating Rate: 0.1~100ºC/min
Power Supply: AC220V 50Hz Cooling Time: 15min (1000ºC...100 ºC)
Highlight:

TGA Thermogravimetric Analyzer AC220V

,

TGA Thermogravimetric Analyzer 50Hz

,

TGA Thermogravimetric Analysis Instrument



TG TGA Thermo Gravimetric Analyzer Thermogravimetric Analyzer



1. Product introduction

Thermogravimetric analysis (TG, TGA) is the study of the thermal stability and composition of materials by observing the change in mass with temperature or time during warming, constant temperature or cooling. It is widely used in research and development, process optimization and quality control in the fields of plastics, rubbers, coatings, pharmaceuticals, catalysts, inorganic materials, metallic materials and composite materials.
Measure and study the following properties of materials:
Quantitative analysis of thermal stability, decomposition processes, adsorption and desorption, oxidation and reduction, composition, additives and fillers.

2. Structural advantages

1. Furnace is heated with a precious metal rhodium wire double-row winding system to minimize interference.

2. The tray sensor is made of precious metal platinum rhodium alloy, which has the advantages of corrosion resistance.

3. Power supply, the circulation cooling part is separated from the main engine to reduce the influence of heat and vibration on the microthermal balance.

4. The upper open cover structure is is easy to operate. It is very difficult to put samples into the upper part of the furnace, and it is easy to damage the sample bars.

5. The host machine adopts constant temperature water device to isolate the thermal influence of the heating furnace body on the chassis and micro-heat balance.

6. Furnace body can be replaced according to customer requirements



3. Controller and software advantages

1. Using imported 32-bit ARM processor Cortex-M3 kernel, sampling speed, fast processing speed.

2. 24-bit four-way sampling AD collects DSC signal, TG signal and temperature T signal.

3. The power and water circulation parts are independently controlled by an 8bit single-chip microcomputer, so that the main unit and the cooling section are separated from each other without interference, but closely connected, and the cooling section is under the control of the main unit.

4. USB two-way communication is adopted between the software and the instrument to fully realize remote operation. The parameter setting and operation stop of the instrument can be carried out through computer software.

5. 7-inch full-color 24bit touch screen, good man-machine interface.TG calibration can be realized on the touch screen



4. Technical parameters

Temperature range  room temperature ~1450ºC
temperature resolution 0.01ºC
temperature fluctuation  ±0.1ºC
Heating rate  0.1~100ºC/min
Temperature control mode  heating, constant temperature, cooling
Cooling time 15min (1000ºC...100 ºC)
Balance measurement range  0.1mg ~ 2G, can be extended to 30g
Accuracy  0.01mg
Constant temperature time  0 ~ 300min arbitrary setting
Display mode  Large LCD display of Chinese characters
Atmosphere device  built-in gas flowmeter, including two gas switch and flow size control (Atmosphereinert: oxidizing, reducing, static, dynamic)
Software  The software can automatically record TG curves for data processing and print experimental reports
Data interface  standard USB interface
Power supply  AC220V 50Hz
