Automatic Gravure Printing Ink Proofer For Plastic Film Ink Printability Test

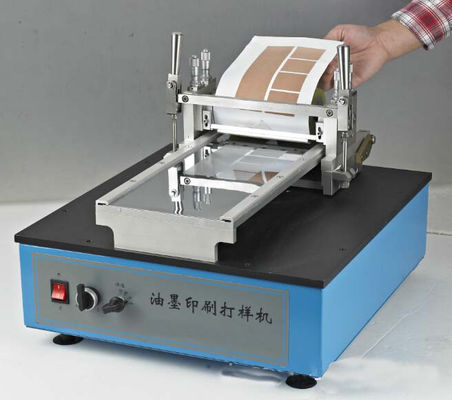

Large Image : Automatic Gravure Printing Ink Proofer For Plastic Film Ink Printability Test

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-N006

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Automatic Gravure Printing Ink Proofer For Plastic Film Ink Printability Test

Description

Dimension:	500400350mm	Weight:	26kg
Printing Length:	95*149mm	Sample Size:	120*240mm
Frequency:	50HZ	Power Supply:	220V
Highlight:	Plastic Film Ink Proofer , Automatic Ink Proofer , Gravure Printing Proofer

Automatic Gravure Printing Ink Proofer for Plastic Film Ink Printability Test

1. Introduction
Gravure Ink Proofing Machine can quickly print gravure proofs under experimental conditions in a way that is close to actual printing. Gravure ink sampling machine is used for laboratory production, ink printing suitability test and ink product research. It directly adopts the flat gravure printing method, which can be used for rapid proofing on various kinds of flexible substrates (e.g. plastic film, paper, etc.). It is easy to operate. Special version of gravure proofing is available.

2. Technical Parameter

1.Electrical Power Source	220V
2.Frequency	50HZ
3.Sample size	120*240mm
4.Weight	26kg
5.Motor Power	120w
6.Roll/Hardness	76*130mm/shoreA55
7.Printing Speed	20/30/40/45m/min
8.Printing Length	95*149mm
9.Dimension	500400350mm

Automatic Gravure Printing Ink Proofer For Plastic Film Ink Printability Test 0

Model	Line number(line/inch)	Pattern density gradient(%)	Remark
A1	150	100	Single pattern
A2*	100	100	Single pattern
B1	150	100-80-60	Three pattern
B2	150	100-90-80	Three pattern
C1	150	100-90-80-70 90	Double row 1+4 pattern
C2	300	100-90-80-70 90
C3*	175	100-90-80-70 90
D1	150	100-95-90-85-80-75-70-60 100-95-90-85-80-75-70-60	Double row 8+8 pattern
D2	150	40-35-30-25-20-15-10-5 80-75-70-65-60-55-50-45	Double row 8+8 pattern

Remark:* model need to customize
