BGD 507/2 Mar Resistance Tester Electric Pencil Hardness Device

BGD 507/2 Mar Resistance Tester Electric Pencil Hardness Device
BGD 507/2 Mar Resistance Tester Electric Pencil Hardness Device

Large Image :  BGD 507/2 Mar Resistance Tester Electric Pencil Hardness Device

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: BGD 507/2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 pieces
Contact Now

BGD 507/2 Mar Resistance Tester Electric Pencil Hardness Device

Description
Test Angle: 45 Degrees Power Supply: 220V/50Hz
Travel Distance: 45 Mm Weights: 250g 2, 500g A, 1000g 1 (balance Weights)
Certification: Includes Calibration Certification
Highlight:

tester paint testing equipment

,

tester paint testing instruments

,

220v paint testing equipment

BGD 507/2 Mar Resistance Tester Electric Pencil Hardness Device

1.Description:

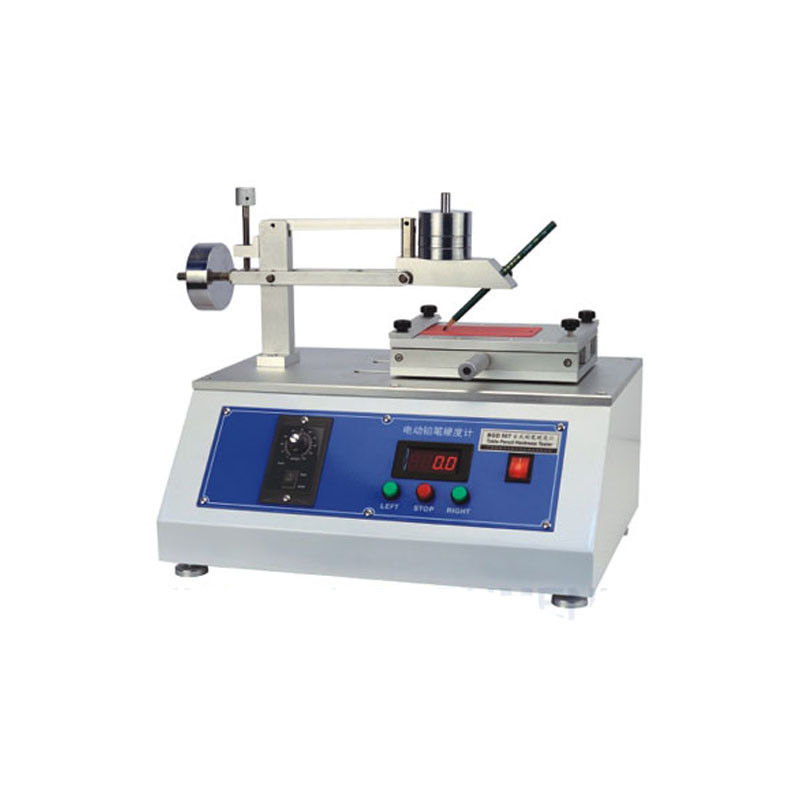

This is a desktop pencil hardness tester with electric (also known as semi-automatic) control. It uses a stepping motor as the transmission part and can achieve forward and backward movements. This instrument features low noise, adjustable movement speed of the pencil tip, adjustable test stroke, and high reproducibility of test results! It is widely used for precisely testing the hardness of various finished products after spraying, such as: mobile phone casings, MP3/MP4 casings, notebook computer casings, and the hardness test of various home appliance and digital product casings after spraying.

2.Technical Parameter


Test angle 45 degrees
Weights 250g 2, 500g a, 1000g 1 (balance weights)
Test platform moving speed 5mm / sec (adjustable)
Travel distance 45 mm
Platform about 200mmx150mm, can be fixed sample (platform size can also be customized according to customer requirements)
Power supply 220V/50Hz
