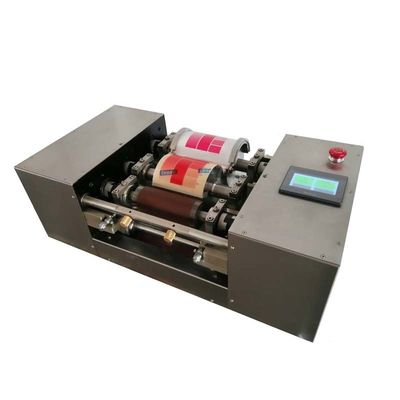

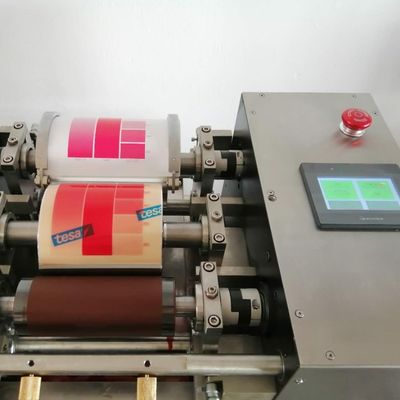

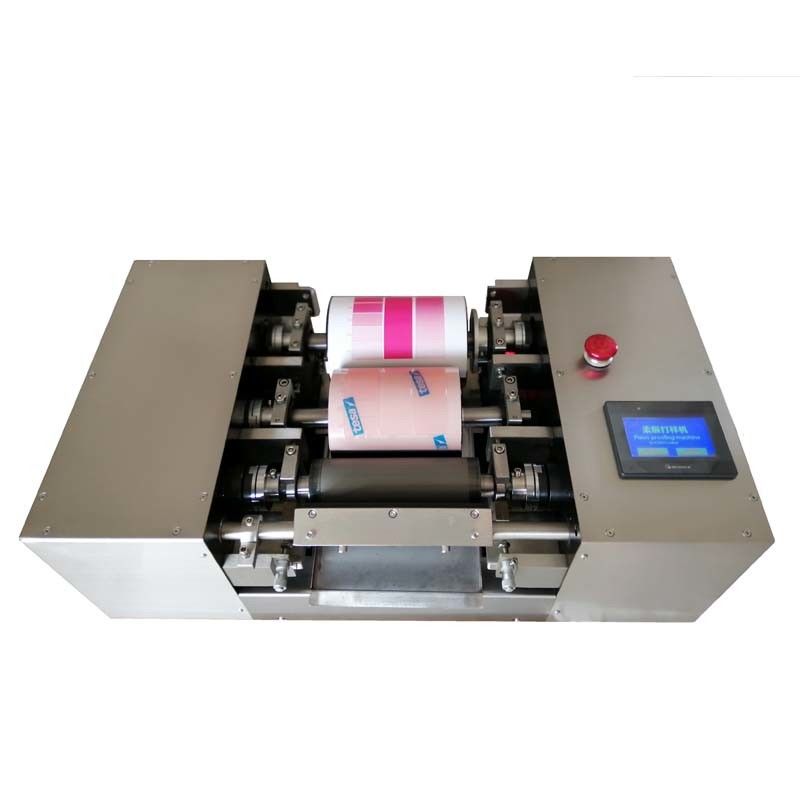

Flexo Ink Proofer Monochrome Ink Proofing Machine 0.01mm - 2mm Material

Flexo Ink Proofer Monochrome Proofing Machine

1. Use and Specification

Applicable objects	monochrome proofing (such as color matching, testing, etc.)
Input power	220V, 50/60HZ
Power	400W
Ink way	drip ink
Thickness of proofing material	0.01-2mm (bendable material)
Proofing material size	170x220mm
Printing area	120x140mm
Plate area	150x160mm
Plate thickness	USA Dupont 1.14mm thick resin plate   back glue 0.38mm
Pressure of plate roller and anilox roller	adjustable by ±2mm, with scale to show pressure
Plate roller and embossing pressure	adjustable by 2mm, with scale to show the pressure
Printing speed adjustable	0-120 m/min
Specification of ceramic roller	USA  φ70x210mm
Lines number of ceramic roller	standard one 600LPI (70-1200 lines can be customized)  BCM: 1.6-5.3
Applicable ink	flexographic waterborne, UV ink, lithography, relief ordinary or UV ink
Suitable proofing materials	paper, plastic film, non - woven fabric, napkin, gold and silver paper jam, etc
External dimensions (length x width x height)	450x800x240mm
Net weight	110KG
UV curing device selection
The instrument can be coated, solid color, dot pattern proofing

2. Specification of Ceramic anilox roller

3. Unique features of the instrument
1. After the ceramic roller rotates the ink evenly, the printing material and plate cylinder start up and rotate for one week to complete the proofing work. The ceramic roller and the printing material cylinder synchronize with the printing plate cylinder to ensure the quality of proofing.
2. The four structures of scraper, ceramic roller, plate roller and printing material roller can adjust the pressure separately and adjust flexibly.
3. Net roller, scraper disassembly and installation is simple and convenient
4. Large cylinder structure is adopted to install printing materials, easy to install printing plate and clean printing plate.
