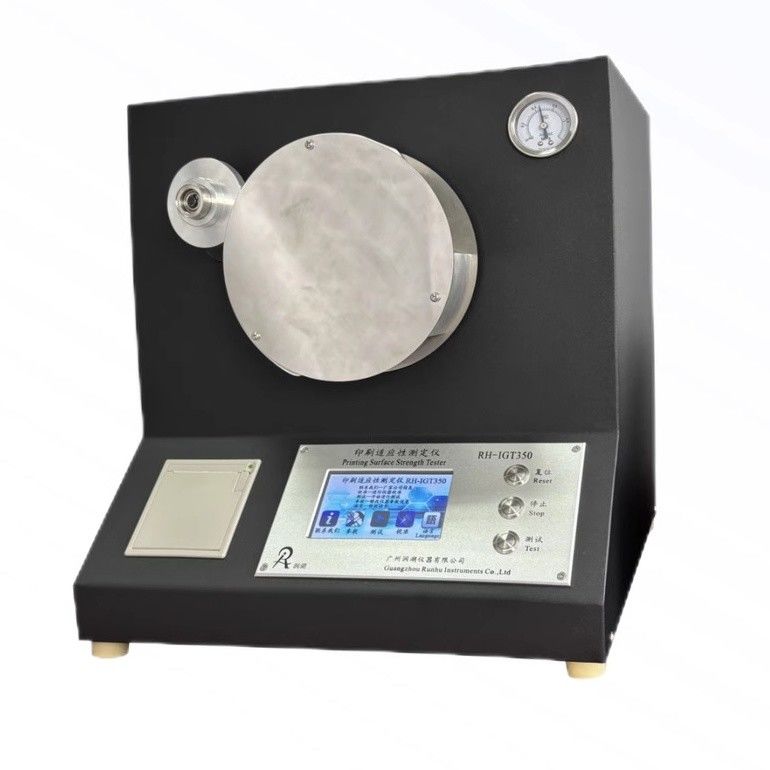

ISO 3782 Ink Printability Tester Ink Proofer for Paper Board
1. Use

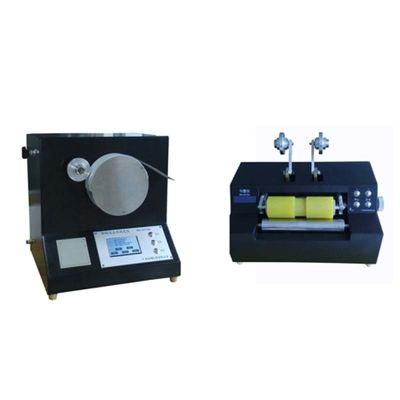

This instrument is a general-purpose paperboard printing adaptability tester. It is a computer-controlled instrument developed specifically for paper printing development testing in accordance with the latest national and international standards for “paper printing adaptability”. The test results are compatible with AIC2-5, IGT A1-3 and IGT A2-3. The instrument utilizes advanced electro-mechanical technology from home and abroad. It is equipped with a high-speed uniform inking device, an inking machine with standard scales, a pulling observation lamp and an aluminum printing plate.
This instrument is suitable for all kinds of offset, letterpress, gravure printing paper and cardboard simulation printing test. It is an ideal instrument for paper testing centers, research institutes, universities and related paper enterprises.
Meet the following standards: ISO3782, GB/T2679.15, GB/T22365, QB/T1058, TAPPI 514 and 575, SCAN P 63:90.
2. Technical parameters
| Item |
Technical specification |
| Measuring range |
(0.2~5)m/s |
| Printing pressure |
0~1000N Adjustable (standard: 350N ±10N) |
| Printing plate size |
Diameter (65±0.2) mm, width (10±0.2) mm |
| Fan body radius |
(85±0.2)mm |
| Velocity accuracy error |
≤1% |
| Weight |
About 45 kg |
| Power supply |
AC220V,50Hz |
| Overall dimensions (host machine) |
388×390×408mm |
3. Product features
1. The control system is accurate
2. High precision motor and computer program control are adopted to ensure accurate increase of Fan-type pendulum speed, and the error between actual speed and theoretical value is kept within 1% during testing
3. Good reproducibility and repeatability
4. Automatic, accurate printing pressure and reasonable mechanical design ensure good reproducibility and repeatability of the instrument.
5. Easy to use, easy to operate
6. Touch screen Chinese display, friendly man-machine interface operation, automatically complete the test.
7. Easy to measure and calibrate
8. The instrument has a built-in measuring and calibration system, the user or the measuring and calibration department can measure and correct the accuracy of the instrument according to the instructions.
9. high speed ink homogenizer is designed for the purpose of homogenizing ink under controllable conditions. It is a kind of ink distribution device with simple operation and stable state.
10. high speed ink homogenizer is an ink homogenizer, which can inking up to two printing plates at the same time

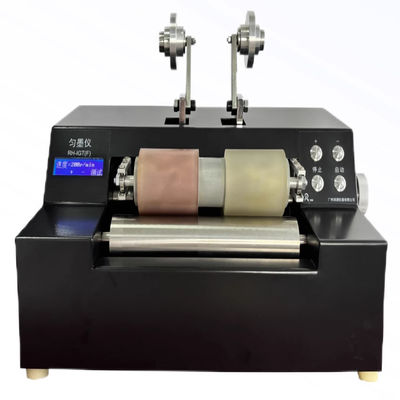

Ink homogenizer
|
Item (ink homogenizer)
|
Technical specification
|
|
Distributing speed
|
50~700 r/min
|
|
The rear aluminum roller drives two aluminum rollers to drive the uniform ink roller
|
|
IGT New printing fitness meter printing plate requirements of rigid structure, can be used in a production environment
|
|
There are suitable for traditional ink and UV curing ink roller
|
|
Meet EC requirements
|
|
Weight
|
About 45 kg
|
|
Power supply
|
AC220V,50-60Hz
|
|
Overall dimensions (main machine)
|
490×380×305mm
|
