Gravure Printing Ink Proofing Machine 450W For Packaging Film

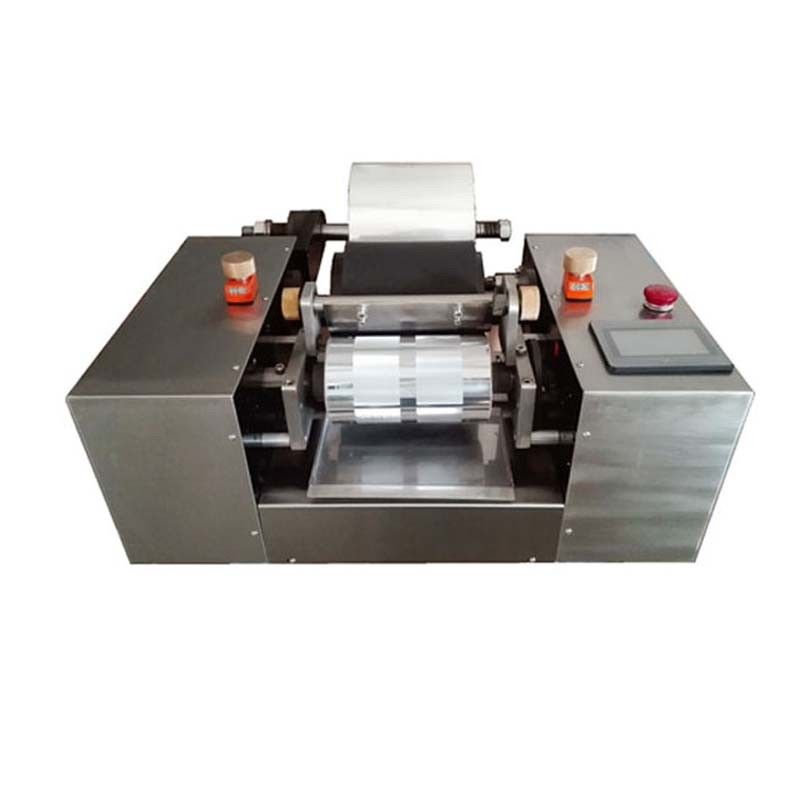

Large Image : Gravure Printing Ink Proofing Machine 450W For Packaging Film

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-N002

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Gravure Printing Ink Proofing Machine 450W For Packaging Film

Description

N/G Weight:

100KG

Input Voltage:

220V 50Hz

Rate Of Power:

450W

Dimension:

300 X 500 X 700mm

Highlight:

Gravure Proofing Machine 450W

Gravure Printing Ink Proofing Machine

Packaging Film Gravure Proofing Machine

Gravure Printing Proofing Machine for Packaging Film

1. Character

Motor Drive System Pressure
Circle pressure circle printing way
(Printing pressure (0~4 mm), printing speed approx. 0~100 m/min), low overprint accuracy possible).
(Printing squeegee pressure adjustable, speed adjustable, computerized process control system)
Suitable for gravure printing ink proofing, (water-based, solvent-based ink), conductive ink, easy to use.
Ink color is measured using a spectral density meter.

2. Specification

N/G Weight	100KG
Flattening Height	300MM
Flattening Length	500MM
Flattening Width	700MM
Input Voltage	220V 50Hz
printing area	Gravure Roll size:(Length )180mm,diameter 140mm Rubber roller size:(Length)100mm
Rate of power	450W
color sample size	55X70mm/Grid (10%,20%,30%,40%,50%,60%,70%,80%,85%,90%,95%,100%,gray level)
Anilox roller	(20um,25um,30um,35um,40um,45um,50um,55um)
