BGD 560 Paint Film Flexibility Tester Equipment Adjustable Cable Drum Roller Platform

BGD 560 Paint Film Flexibility Tester Equipment Adjustable Cable Drum Roller Platform
BGD 560 Paint Film Flexibility Tester Equipment Adjustable Cable Drum Roller Platform BGD 560 Paint Film Flexibility Tester Equipment Adjustable Cable Drum Roller Platform

Large Image :  BGD 560 Paint Film Flexibility Tester Equipment Adjustable Cable Drum Roller Platform

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: BGD 560
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 pieces
Contact Now

BGD 560 Paint Film Flexibility Tester Equipment Adjustable Cable Drum Roller Platform

Description
Stainless Steel Shaft Rod Length: 35mm Shaft Rod 1: Diameter Φ15mm;
Shaft Rod 2: Diameter Φ10mm Shaft Rod 3: Diameter Φ5mm;
Shaft Rod 4: Diameter Φ4mm Color: Blue
Highlight:

Paint Film Flexibility Tester

,

Flexibility Tester Adjustable

,

Paint Film Flexibility Test Equipment

BGD 560 Paint Film Flexibility Tester Paint Film Elasticity Device

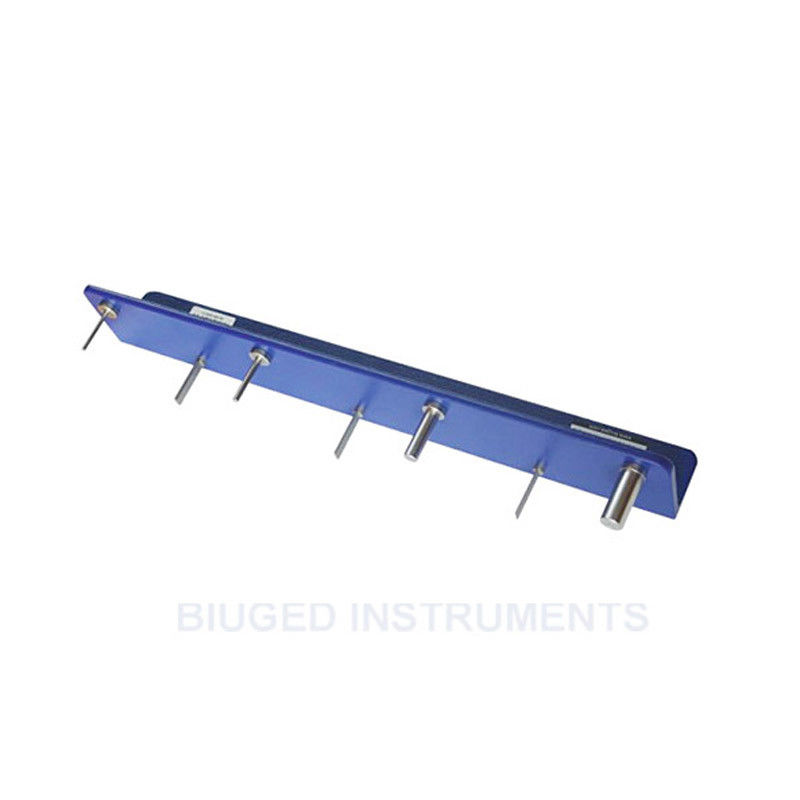

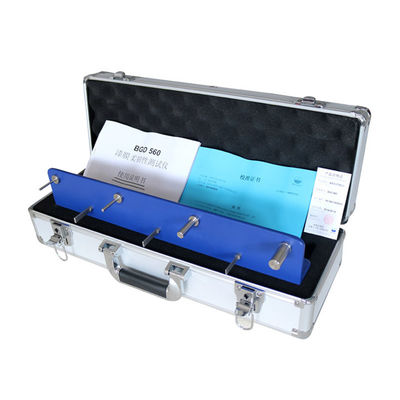

Description: The paint film flexibility tester provided by Biuged, also known as paint film elasticity tester, is manufactured in accordance with the provisions of the national standard GB/T1731 Paint Film Flexibility Determination Method. During the test, the test plate coated with paint film is bent on the axle bars of different diameters, and the minimum axle bar diameter (mm) that does not cause damage to the paint film is used to indicate the flexibility of the paint film.



2.Technical Parameter

Stainless steel shaft rod length 35mm
Shaft rod 1 Diameter Φ15mm;
Shaft rod 2 Diameter Φ10mm
Shaft rod 3 diameter Φ5mm;
Shaft rod 4 diameter Φ4mm;
Shaft rod 5 cross section 3×10mm, radius of curvature Φ1.5mm;
Shaft rod 6 cross-section 2×10mm, radius of curvature Φ1.0mm;
Shaft rod 7 cross-section 1×10mm, radius of curvature Φ0.5mm;
