Electromagnetic Vibration Test Machine Six Dimensional Space High Frequency 2KW

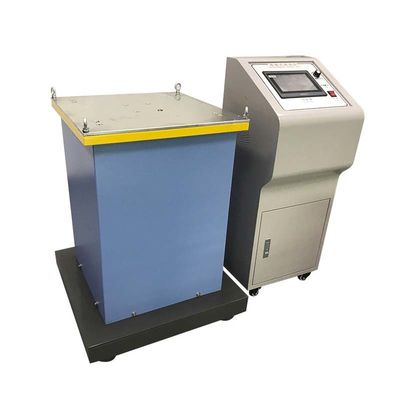

Large Image : Electromagnetic Vibration Test Machine Six Dimensional Space High Frequency 2KW

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Model Number:	LR-H007

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Supply Ability:	200

Contact Now

Electromagnetic Vibration Test Machine Six Dimensional Space High Frequency 2KW

Description

Maximum Test Load:	0-60 Kg	Power Supply Voltage (V):	220V 50HZ
Power:	2.0kw	Vibration Direction:	Up And Down + Left And Right + Front And Back
Vibration Waveform:	Sine Wave
Highlight:	Electromagnetic Vibration Test Machine , Vibration Test Machine High Frequency , Electromagnetic Vibration Tester 2KW

Electromagnetic Vibration Test Machine Six-Dimensional Space High Frequency

1. Use
Electromagnetic Vibration Tester are widely used in national defense, aviation, communications, electronics, automotive, home appliances and other industries, this type of equipment for early failure detection, simulation of the actual operating state assessment and structural strength testing, the product has a wide range of applications, wide applicability, significant test results, high reliability. Sine wave, frequency modulation, frequency scanning, programmable, frequency doubling, logarithmic, time control.

2. Technical Specification

1. Maximum test load	0-60 kg
2. Vibration direction	up and down + left and right + front and back (six-dimensional all-in-one machine) Features: can run in 6 directions at the same time, and can set different frequency values.
3. Table size	please select the right table according to the actual size of the test product: 500 x 500 mm 750 x 750 mm 1000 x 1000 mm 1500 x 1500 mm
4. Amplitude	0 -- 5mm (random, varying with frequency)
5. Frequency sweep	1-600hz can be set arbitrarily, and the true standard frequency sweep (if 1-3000hz can be customized for price negotiation)
6. Maximum acceleration	10G
7. Functions	frequency modulation, programmable and time control
8. Precision	the frequency can be displayed to 0.01Hz and precision to 0.1hz
9. Programmable functions	1-600hz, 1-8 sections can be set at any frequency and time, and can be cycled
10. Frequency doubling function (0.01Hz)	the number of 8 segments doubled from low to high frequency to high to low frequency
11. Logarithmic function (0.01Hz)	there are 3 modes: logarithmic/circulatory, from down to up/down to down
12. Vibration waveform	sine wave (half wave/full wave)
13. Time control	any time can be set (in seconds)
14. Power supply voltage (V)	220V 50HZ
15. Power	2.0kw
