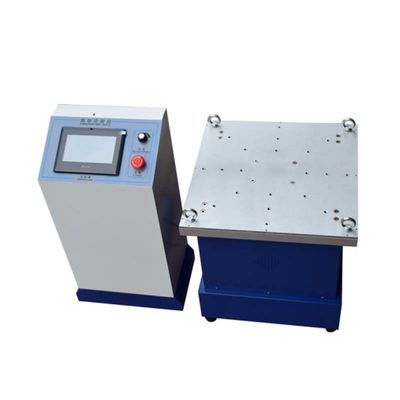

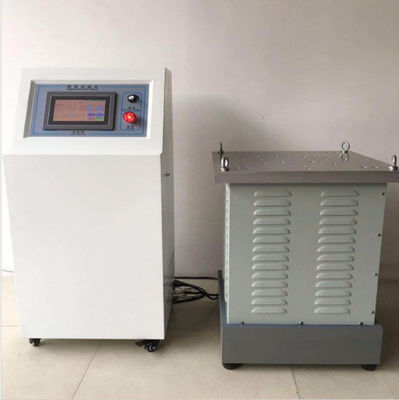

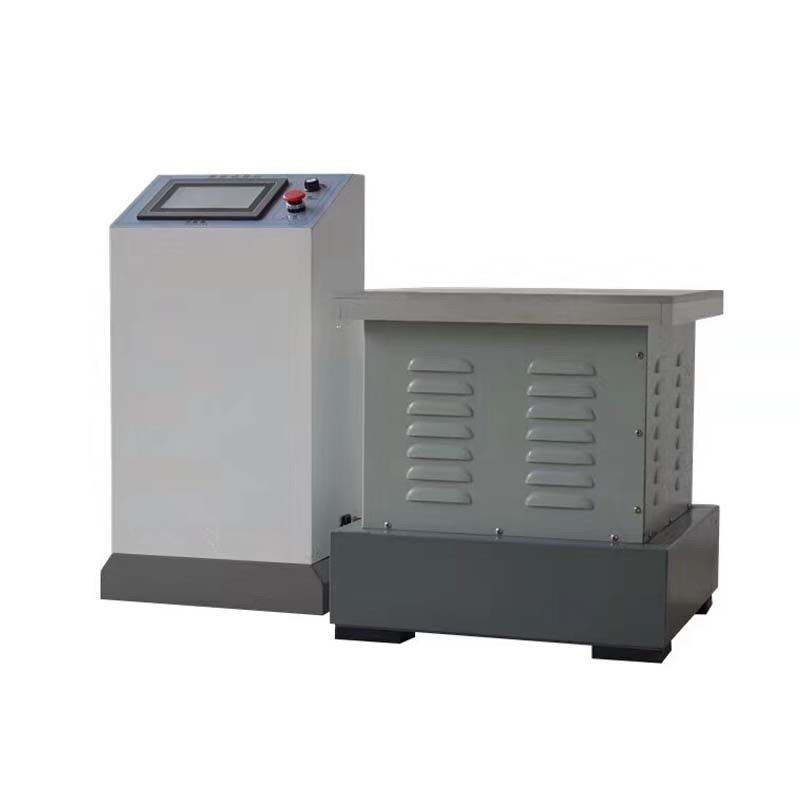

ASTM D999 Electromagnetic Tester Vertical Horizontal Vibration Tester Shaking Table

ISO 13355 ASTM D999 Electromagnetic Vertical Horizontal Vibration Tester Shaking Table

1. Introduction

Electromagnetic vibration table is widely used in automotive parts, instruments, toys and other industries in product design, research and development, manufacturing process.
The control system adopts high sensitivity color LCD display, which can be directly selected by touching, and the test parameter setting is intuitive and simple, displaying the current execution program in time, displaying the current vibration frequency in time, and having the function of drawing frequency curve.

2. Test Standard
ISO 2247 packaging - full - loaded transport packaging and unit cargo - fixed low frequency vibration test
ISO 13355 packaging - all, packed transport packaging and unit load - vertical random vibration test
IEC 60068 basic environmental test procedure
ASTM D999 test method for vibration test of shipping containers
ASTM D4728 random vibration test method for transport containers
ASTM D3580 standard for vibration test of products (vertical linear motion)
GB/T 4857 basic test of packaging and transportation packaging parts
GB/T 2423 environmental test for electrical and electronic products

3. Product features
1. The control frequency is precise and balanced for long term operation without drift;
2. With a single point, period, period of time timing;
3. Stepless adjustment of amplitude, with frequency sweep and fixed frequency function, adapt to the test requirements of different industries;
4. The built-in amplitude prediction program and amplitude modulation are easy;
5. Four-point synchronized vibration, table vibration uniformity;
6. Add anti-interference circuit to solve the interference caused by strong electromagnetic field to the control circuit, and the table is non-magnetic and electrostatic.
7. Made of complex industrial materials with precise processing, the table body is beautiful and generous, the operation and control is humanized, and the use of special measurement and control module makes the equipment work more stable.

4. Specification

Model	LR-H011-A	LR-H011-B	LR-H011-C
Frequency Range (Hz)	5~400	5~600	5~3000
Product load(Kg)	50
Frequency accuracy	0.01 Hz
Maximum acceleration	<20g
Amplitude(mm)	0.001-5
Vibration mode	electromagnetic
Amplitude modulation mode	Electronic amplitude modulation
vibration direction	Vertical+Horizontal
vibration waveform	Sine wave
Test mode	Fixed frequency, sweep frequency, double frequency, program, logarithm, random
Time set	0-9999H/M/S
Work table size	500*500mm
Power(V/Hz)	220/50±5%
Rate of power(KVA)	3.2
Cooling mode	Air cooling
