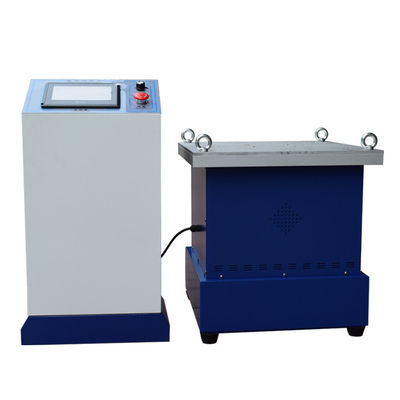

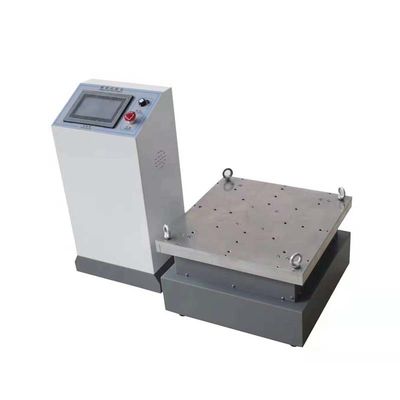

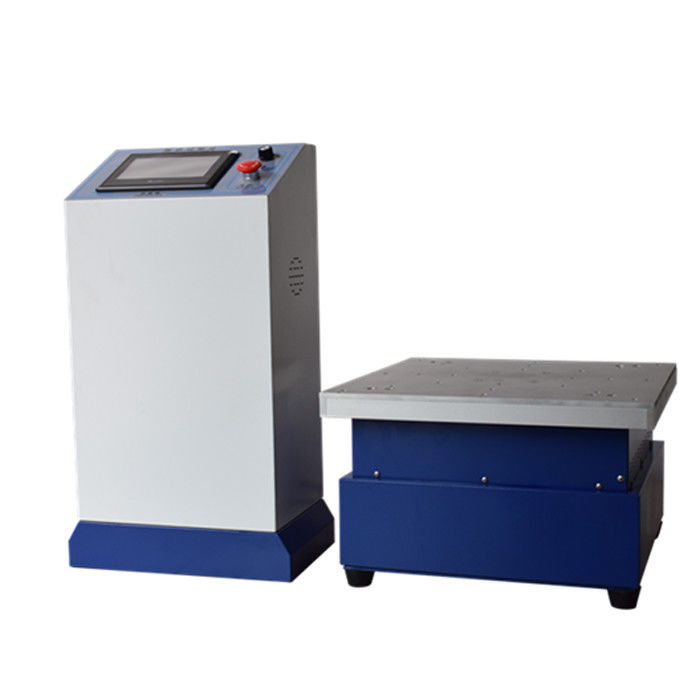

Auto Parts Vibration Test Machine Vertical Electromagnetic Vibration Shaker Table 50kg

ISO 2247 ISO 13355 Electromagnetic Vertical Vibration Tester Variable Frequency

1. Introduction
Electromagnetic vibrating table Widely used in auto parts, instrumentation,Toys and other industries of product design, research and development,In the manufacturing process, analog products are transported and used in the production of collision and vibration, detection of the actual productWorking conditions and structural strength.

2. Meet the standards
ISO 2247 packaging - full - loaded transport packaging and unit cargo - fixed low frequency vibration test
ISO 13355 packaging - all, packed transport packaging and unit load - vertical random vibration test
IEC 60068 basic environmental test procedure
ASTM D999 test method for vibration test of shipping containers
ASTM D4728 random vibration test method for transport containers
ASTM D3580 standard for vibration test of products (vertical linear motion)
GB/T 4857 basic test of packaging and transportation packaging parts
GB/T 2423 environmental test for electrical and electronic products

3. Product features
1. Precise control frequency, balance, long-term operation without drift;
2. with a single point, period, period of time timing;
3. stepless adjustment amplitude, with sweep frequency and fixed frequency function, adapt to the test requirements of different industries;
4. The built-in amplitude prediction program and amplitude modulation are easy;
5. four point synchronous vibration, table vibration uniform;
6. Add anti-interference circuit to solve the interference caused by strong electromagnetic field to the control circuit, and the table is non-magnetic and electrostatic.
7. the use of complex industrial materials manufacturing, precision processing, beautiful and generous table body, humanized operation and control, the use of special measurement and control module, so that the equipment work more stable

4. Speicification

Model	LR-H010-A	LR-H010-B	LR-H010-C
Frequency Range(Hz)	5~400	5~600	5~3000
Product load(Kg)	50
Frequency accuracy	0.01 Hz
Max Acceleration	<20g
Amplitude(mm)	0--5
Vibration mode	electromagnetic type
Amplitude modulation mode	lectronic amplitude modulation
Vibration Direction	Vertical
Vibration waveform	sine wave
Test mode	Fixed frequency, sweep frequency, double frequency, program, logarithm, random
Time set	0-9999H/M/S
Work table size	500*500mm
Power(V/Hz)	220/50±5%
Rate of power(KVA)	1.5
Type of cooling	Wind cooling
