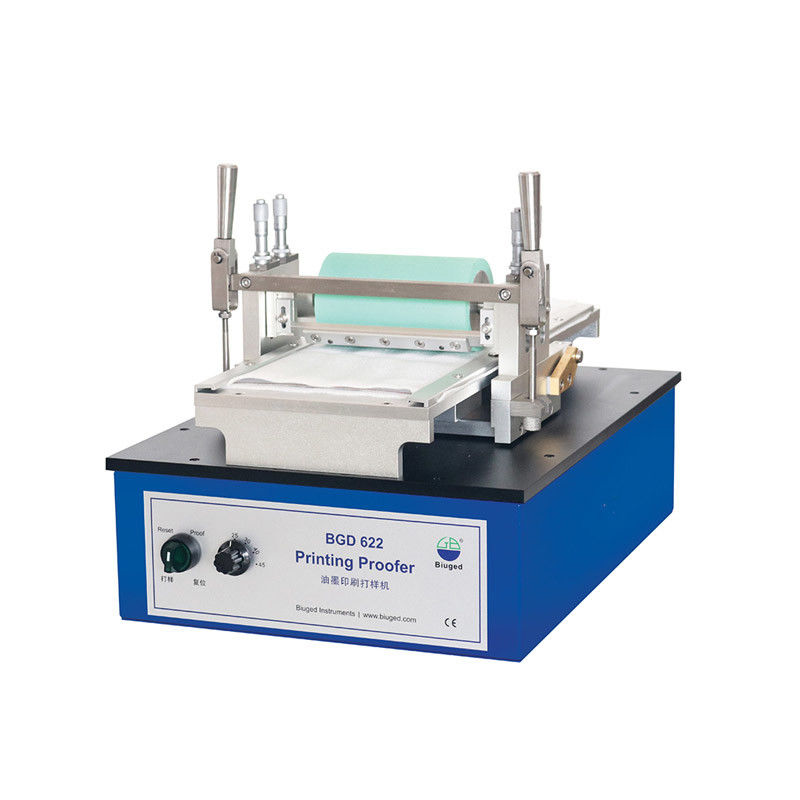

Bgd 622 Flexographic Ink Flexo-Grade Printing Fluid Printing Proofer for Gravureink

Bgd 622 Flexographic Ink Flexo-Grade Printing Fluid Printing Proofer for Gravureink
Bgd 622 Flexographic Ink Flexo-Grade Printing Fluid Printing Proofer for Gravureink

Large Image :  Bgd 622 Flexographic Ink Flexo-Grade Printing Fluid Printing Proofer for Gravureink

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: BGD 622
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 pieces
Contact Now

Bgd 622 Flexographic Ink Flexo-Grade Printing Fluid Printing Proofer for Gravureink

Description
Power Of Motor: 120W Weight: 26KG/27KG
Source: 220V 50Hz Take A Sample Trip: 150mm
Highlight:

220v printing proofer

,

50hz printing proofer

,

220v flexo ink proofer

Bgd 622 Flexographic Ink Flexo-Grade Printing Fluid Printing Proofer for Gravureink

1.Description: BGD 622 series gravure/flexo ink proofers are used to verify the printability of liquid inks (gravure inks, flexo inks) in the laboratory. BGD 622/1 is a rotary gravure direct printing system (commonly used for solvent-based inks), and BGD 622/2 is a rotary gravure transfer system (commonly used for water-based inks), suitable for a variety of flexible substrates (paper, plastic film, etc.). There are many options for engraved gravure plates.
The special ink printing gravure plates are finely processed and engraved, designed for gravure ink printing proofers and flexographic ink printing proofers.

2.Technical Parameter


Order information →
technical parameters  ↓		 BGD 622/1 BGD 622/2
range of use  gravure ink Rubbing ink
 power of motor 120W 120W
Specifications of printing rubber rollers Φ76×130mm Φ50×130mm
Hardness of printing rubber roller Shore   A  55 Shore   A  50
Metal mesh roller specification/line number ----- Φ60×130mm
Printing speed Four levels:20-30-40-45m/min Four levels:20-30-40-45m/min
Take a sample trip 150mm 150mm
source 220V   50Hz 220V   50Hz
outline dimension 500mm×340mm×350mm 500mm×340mm×350mm
weight 26KG 27KG
