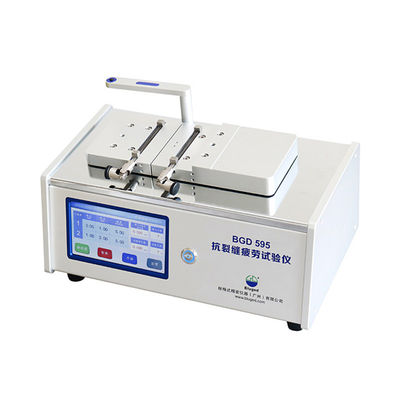

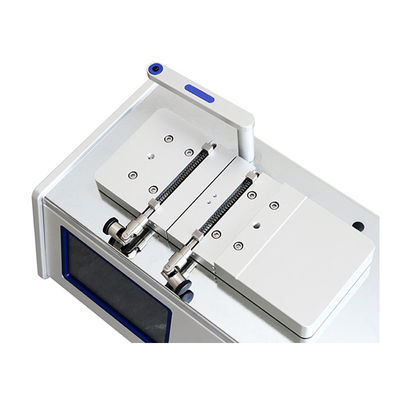

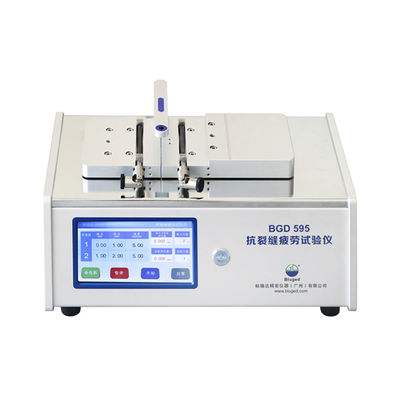

BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating

BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating
BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating
BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating

Large Image :  BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: BGD 595
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 pieces
Contact Now

BGD 595 Anti Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating

Description
Instrument Size: 423mm × 258mm × 254mm Instrument Net Weight: 23 KG
Machine Power: 80W Test Plate Size: 120mm × 40mm × 10mm
Accuracy: ±1%
Highlight:

tester paint testing equipment

,

tester paint testing instruments

,

120mm paint testing equipment

BGD 595 Anti-Crack Fatigue Tester Crack Resistance Fatigue Machine For Building Coating

1.Description:Coatings used for buildings often fail due to cracking of the coated substrate. The BGD 595 Crack Resistance Fatigue Tester is designed in accordance with the “Crack Resistance Fatigue Test” in the latest standard HG/T 4343-2024 “Waterborne Colorful Architectural Coatings”, and it can be used to move the left and right part of the cracks of the board to be tested horizontally or relatively reciprocally. It can make the left and right part of the board crack to be tested move horizontally or relatively reciprocatingly, and the relative moving distance, the number of cycles and the moving speed can be set.



2.Technical Parameter

 Maximum travel distance 10 mm
 Tensile force measurement range 10N ~ 250N
 Moving distance accuracy 0.01mm
 Moving speed 0.01mm/min ~ 20mm/min
 Test plate size 120mm × 40mm × 10mm;
 Machine power 80W
 Instrument size 423mm × 258mm × 254mm
 Instrument net weight 23 KG
