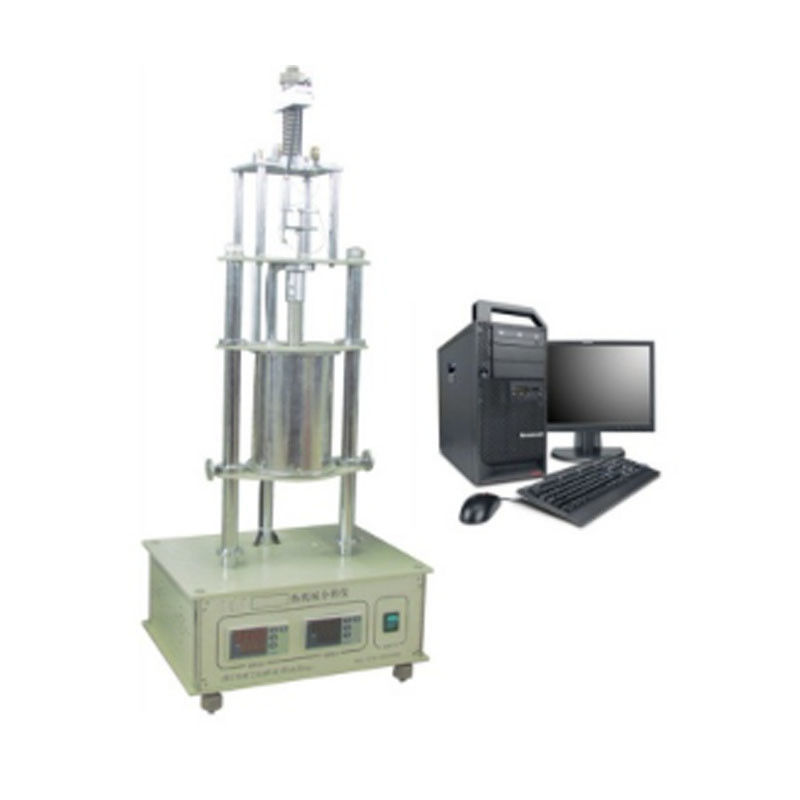

TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester

TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester
TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester

Large Image :  TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: LR-ZY300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1000-3000
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

TMA Thermomechanical Analyzer Glass Transition Temperature Comprehensive Tester

Description
Delivery: 30 Wrok Days Power Supply Voltage: 220V±10﹪, 50HZ
Standard: ISO 306 Power: 220 V 50 HZ
Highlight:

TMA Thermomechanical Analyzer

,

Glass Transition Comprehensive Tester

,

Temperature Comprehensive Tester

 ISO 306 Thermomechanical Analyzer Thermal Expansion, Glass Transition Temperature Comprehensive Tester

1. Overview

This instrument is mainly used to measure the three thermophysical indicators of expansion coefficient, glass transition temperature and thermoplastic Vicat softening temperature of plastics, epoxy resins and other materials. The glass transition temperature test complies with GB11998-89 (Method for determination of glass transition temperature of plastics - Thermomechanical analysis method), and the determination of thermoplastic Vicat softening temperature complies with GB/T1633-2000 ISO 306:1994 (Determination of Vicat softening temperature (VST) of thermoplastics). The instrument is widely used in laboratories such as material production enterprises, quality inspection units, universities, and scientific research institutes for thermomechanical analysis of plastics.

2. Technical Parameters

Electric furnace temperature

Room temperature -300℃

Maximum load

10N

Power supply voltage

220V±10﹪, 50HZ

Maximum power consumption

less than 0.5KW

Displacement measurement

0-3mm, resolution 0.1um

Temperature measurement

resolution 0.1℃

Specimen size



Expansion coefficient specimen

Less than or equal to Φ10×20㎜

Glass transition temperature specimen

Cylindrical specimen Φ(4.5±0.5)×(6.0±1.0)mm

Vicat softening temperature sample

The sample is 3-6.5mm thick, square with a side length of 10mm or cylindrical with a diameter of 10mm.

Configuration: Contains one LR-ZY300 test host, one set of test software, one set of weights, and one computer.
