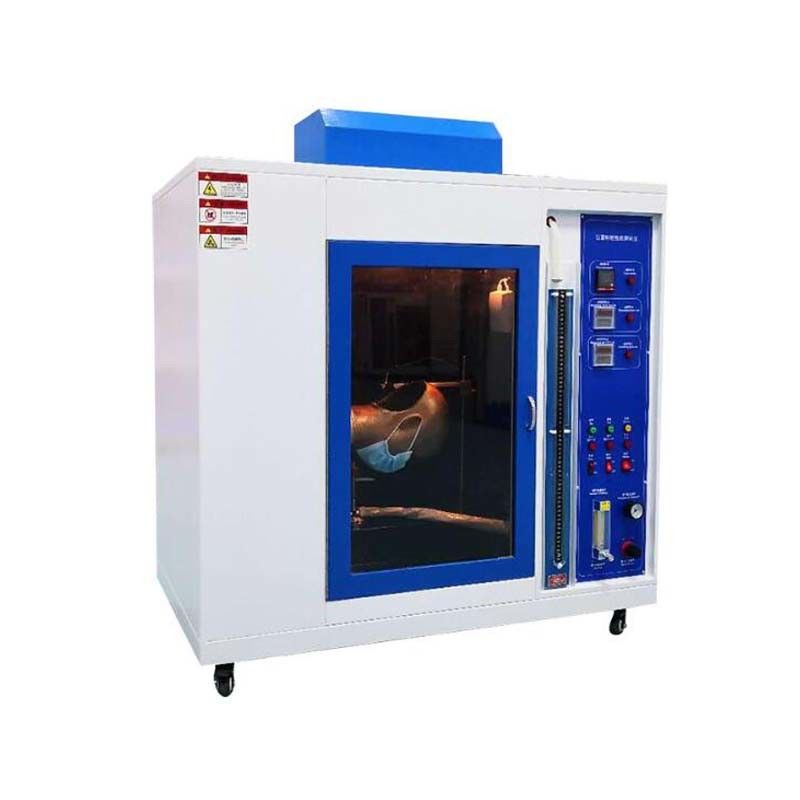

Medical Surgical Mask Flame Retardant Tester 800 ºC Automatic Ignition

1. Testing standard
Medical surgical mask
The flame retardant tester of surgical mask produced by our company is used for the flame retardant tester of surgical mask. Medical surgical mask meets the test standard YY0469-2011 EN149.

 2. Equipment features
1. Automatic ignition.
2. Digital display of flame temperature.
3. Automatic movement for detection.

3.  Technical parameters of detector

1. Flame temperature: 800±50ºC.
2. The movement speed of the head mold is 60±5mm/s.
3. The flame height is 40±4mm.
4. The distance between the combustion top and the bottom of the sample is 20±2mm

4. Configuration list

Name	Unit	Qty	Remark
Temperature sensor	Pcs	1	Collect the temperature
Chamber structure	Pcs	1	powder coating
Metal head	Pcs	1	Metal head
Time relay	Pcs	1	Timer
Electrical appliances	set	1	Zhengtai
Flame regulator	Pcs	1	Adjust flame temperature and height
Motor unit	Pcs	1	With brake positioning motor
