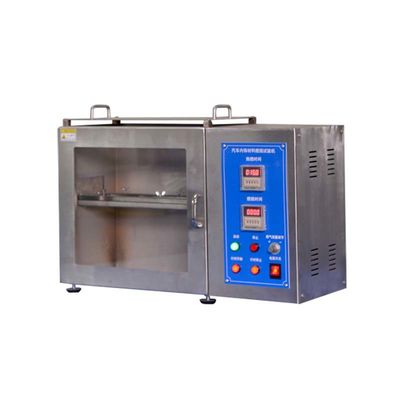

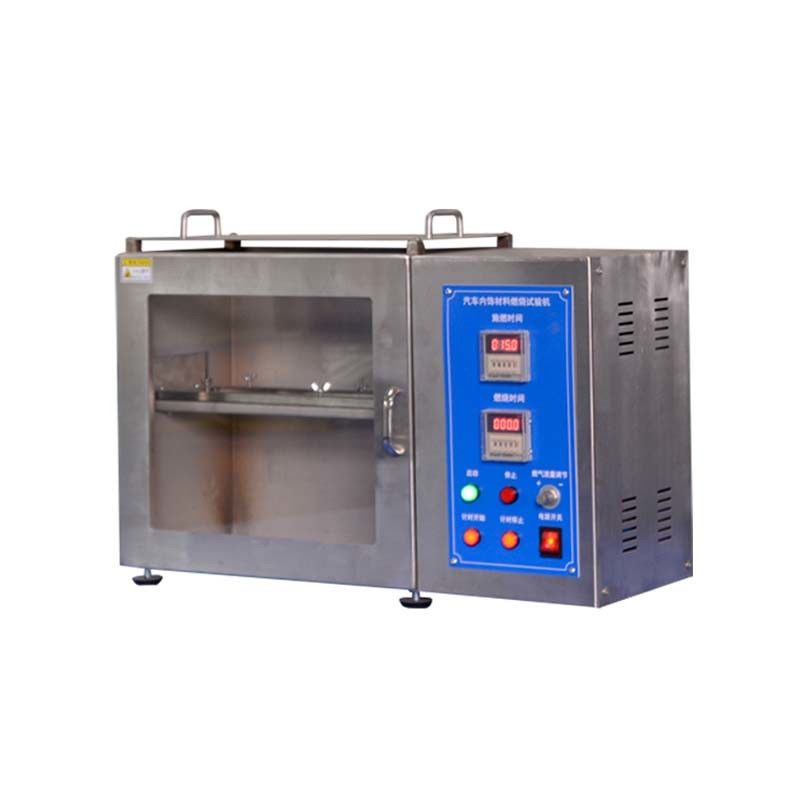

Automotive Interior Materials Horizontal Burning Chamber 90° ISO 3795

ISO 3795 Automotive Interior Materials Buring Chamber 90°

1. Test Standard
GB8410-2006, ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D 1201, BSAU 16.....

2. Technical description
This Buring testing machine is suitable for the automobile interior material horizontal combustion characteristic this machine combustion box is made of stainless steel, the appearance is beautiful, withstands the smoke, the gas corrosion, and the control system automation degree is high, has the automatic ignition, the automatic air supply, the automatic timing, the automatic end test and so on function, the observation record is convenient, the use is stable reliable.

3. Basic specifications

box size	385 x 204 x 360mm
flame time	0 ~ 99 minutes and 99 seconds can be set
afterflame time	0 ~ 99 minutes and 99 seconds can be set
combustion Angle	90 ° (that is, 0 °)
size parameters of the burner	Ø 9.5 mm inner diameter nozzle, nozzle effective length is 100 mm, with air conditioning holes
flame height	it can be adjusted from 20mm to 100mm according to standard requirements
thermometer	150ºC, resolution: 1ºC
steel ruler	Length: 500mm; accuracy: 1mm
combustion gas	high purity liquefied gas
product features	this testing machine is composed of control box, combustion box body, combustion lamp, electromagnetic valve, a complete set of high pressure igniter, thermometer, signal control line and sample upper and lower bracket and 500mm/1mm steel ruler.
Power supply	AC 220V / 50Hz
