IEC 60884 Voltage Power Load Tester 3 Station 5 - 300V Test Breaking Capacity

IEC 60884 Voltage Power Load Tester (3station) 5 ~ 300V Test Breaking Capacity

1. Test Standard
IEC 60884-1, GB2099.1, GB16915, GB15092, UL1054.

2. Use

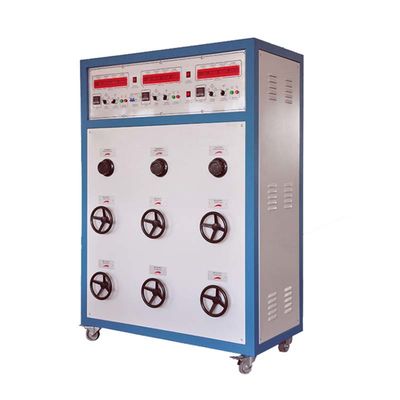

This load cabinet is designed for the electrical accessories' breaking capacity and normal operation, etc., and it can be used to simulate the electrical life and breaking capacity test of the electrical products in the live state. In addition, the load current and surge current of different specifications can be customized according to customer requirements.This load cabinet is a cabinet structure, the box body USES the iron plate pressure spraying treatment, the bottom of the box has four wheels, easy to move.The upper front of the box body is the control panel, which is made of aluminum plate etching process and sandblasting and is durable.There are instrument power switch, intelligent digital display voltmeter, ammeter, power meter, power factor meter, energizing counter, current output button, current stop button, alarm, etc.Inside the box is a combination of inductive resistance piece, strong wind cooling mechanism, voltage regulation system, high-power reactor, various electrical control components, control circuit board and output wiring, etc.

3. Technical Specifications

Load current	3 ~ 30A (or customized according to customer requirements) continuously adjustable, digital display
Load voltage	5 ~ 300V continuously adjustable, digital display
Power factor	0.3 ~ 0.999 can be adjusted continuously and displayed numerically
Counter number range of pass and power off cycle	1 ~ 999999 preset
Power supply	AC 220V / 50Hz
Number of work stations	3 work station
