Building Material Combustion Tester Stainless Steel Ignitability Apparatus ISO 11925

ISO 11925 Stainless Steel Building Material Combustion Tester Lgnitability Testing Machine

1. Technical specifications

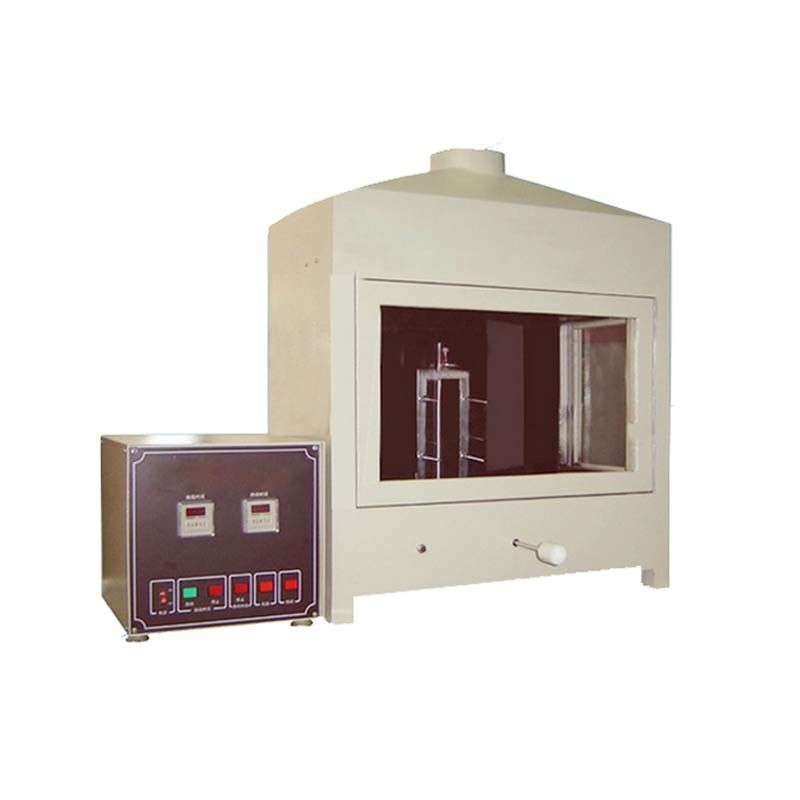

The combustion testing machine is designed and manufactured according to the standard GB8626-88 and is used to determine whether the building materials are flammable under the specified conditions.The test machine consists of two parts: the control box and the combustion box. The control system has the function of automatic ignition, automatic gas supply and automatic timing. The operation is simple and convenient.

2. The basic specifications

The dimensions of the box size test box are 700mm x 400mm x 810mm, and the top of the box has 150mm smoke vent.

The front and right side are equipped with a glass observation window with a stainless steel mesh at the bottom.

Burner size parameter burner by aperture. The nozzle and regulator of 0.17mm are composed of four 4mm air suction holes

Casting time 0 ~ 99 minutes 99 seconds can be set.

The ignition time is 0 ~ 99 minutes 99 seconds can be set

The flame height can be adjusted to 20 + 2mm by standard

Combustion gases are used in the purity of more than 95% propane gas

Burning Angle 45 °

The whole set of configuration is composed of control box, combustion box body, burner, solenoid valve, high-voltage igniter, signal control line and sample bracket.

Power AC 220V / 50
