ASTM D6413 Textile Fabric Burning Testing Machine Flame Retardant Tester 25 Degree

ASTM D6413 Textile Fabric Burning Testing Machine Flame Retardant Tester 25 Degree

1. The reference standard
GB/T 5455-1997

2. Technical specifications
This test machine is suitable for the determination of flame retardant properties of various flame retardant textiles;According to the GB/T 545-1997 standard, the design is made to determine the tendency of the continuous combustion, flame retardant and carbonization of textiles. The instrument is easy to operate.

3. The basic specifications

1) technical indicators	GB/T 545-1997
2) the combustion gas	the industrial propane or butane gas (the product has a purity of more than 98 %).
3) time	0 ~ 99 minutes 99 seconds can be set
4) reignite time	0 ~ 99 minutes 99 seconds can be set
5) smouldering time	0 ~ 99 minutes 99 seconds can be set
6) combustion burner nozzle diameter	Ø 11 mm
7) combustion nozzle head and vertical Angle	25o
8) internal dimensions of combustion chamber (long x width x height)	329 x 329 x 767mm.
9) roof vent size	12.5 mm Ø, quantity: 16.
10) boxes on both sides of the vent size	12.5 mm Ø, quantity: box flanked by six.
11) sample clamps	two thick 2.0mm thick, 422mm long, 89mm wide, u-shaped stainless steel plate, sample size: 356 x 51mm.
12) weight of weight	54.5 g, 113.4 g, 226.8 g, 340.2 g, 453.6 g.

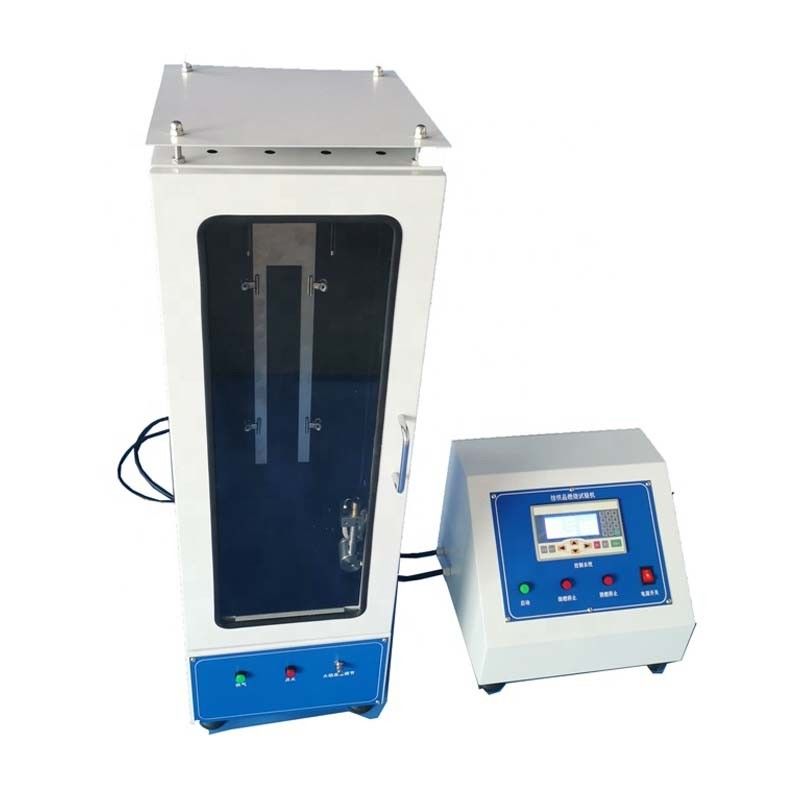

13) product features	the test machine consists of control box, combustion box, burner, PLC, liquid crystal display, electromagnetic valve, high-pressure ignition, gas pipe, pressure regulating valve and signal control line.
14) power supply	AC 220V, 50Hz
