1. Test standard
The test machine is designed according to the relevant provisions of UL1581-2006 1080 (VW -1 combustion test) and 1100 section (horizontal sample/FT2 combustion test).
2. Main functions

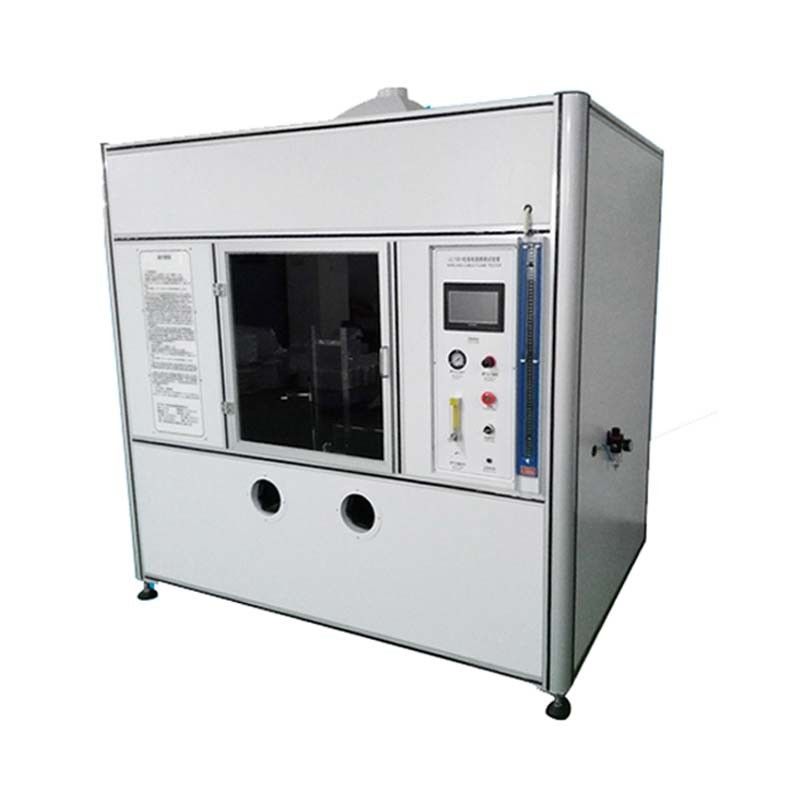

UL1581 combustion test chamber is suitable for testing the flame retardant properties of the insulation layer of the cable under abnormal conditions such as overheat and overflow. The test chamber consists of test part and control part. The control system has high degree of automation. It has automatic ignition and temperature function, temperature and time number display. It is convenient to observe and reliable.
3. Technical parameters
1. High anti-corrosion steel seal, spraying high anti-corrosion coat, no air flow when testing.
2. Enclosure front toughened glass observation door, convenient for observation test
3. Operation panel in observation door on the right side, convenient for observation test
4. Internal volume acuity :≥4.0 m3
5. Thermal sensor (10.0±0.05 g and thermocouple electrolytic copper piece)
6. K type thermocouple, with 0.5 mm diameter stainless steel pipe's coat
7. Intelligent PID temperature controller and match the K type thermocouple, the readings of up to 1000 ºC
8. Timer: 0-999s can be set freely, minimum resolution can reach 0.01 S
9. Test flames rising from 100 ºC ± 2 ºC to 700 ºC ± 3 ºC need time for 54 s ± 2 s
10. Main fixture: test stand and the burning torch
11. Test stand: # SUS304 stainless steel,Horizontal and vertical holder.
12. Combustion burner: meet the requirements of ASTM D 5025-05, standard power: 500 w.Diameter of nozzle: 0.90± 0.03mm, length of nozzle: 1.60± 0.05mm, diameter of nozzle: 9.5mm;Height of nozzle from air inlet: 100mm± 10mm
13. Fire height: 20-110mm,adjustable
14. Low noise industrial fan, exhaust, quickly test personnel are not exposed to the gas completely, harmless to the body
15. Adopts PLC control system and large screen, touch screen, interface aesthetics, simple operation and easy to understand
16. gas: purity of at least 98% methane, bring your own gas by the customer
17. transmission system adopts step motor control, Angle can be set, easy to operate accurately
18. Appearance size: 2100 * 1360 * 2200 mm
19. Power: 1phase,220V.50/60hz
20. External weight: 300KG
4. Control system
| (1) mainly including |
flow meter, pressure difference meter; |
| (2) flow meter range |
1000ml/min; |
| (3) combustion pressure reducing valve |
1PCS; |
| (4) u-type differential pressure gauge |
1PCS. |
