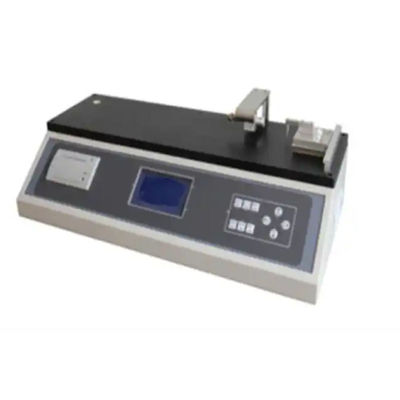

ISO 8295 Digital Static Friction Tester Dynamic Friction Tester For Wood Coating Tires

ISO 8295 Static Friction and Dynamic Friction Tester for Wood Coating Tires
1.Overview
Professionally suitable for measuring the static friction coefficient and dynamic friction coefficient of plastic film and sheet, rubber, paper, cardboard, woven bags, fabrics, metal composite belts, conveyor belts, wood, coatings and other materials when sliding. By measuring the smoothness of the material, the material production quality process indicators can be controlled and adjusted to meet the product use requirements. It can also achieve 180° peel strength test of self-adhesive, release paper, protective film, tape, label and other materials by replacing the fixture.


2.Features
1. Microcomputer control, automatic test process.
2. Support GB, ISO 8295, ASTM D1894, TAPPI T816, GBT2792 and other standard test methods, and support any non-standard test.
3. PVC control panel, LCD display results, parameters, test curves.
4. High-precision sensor, high test result accuracy, good stability and repeatability.
5. Support any slider quality test.
6. The test stroke can be set arbitrarily within 0-320mm.
7. The test speed can be set arbitrarily within 0-1200mm/min.
8. The whole machine has no mechanical knobs and is fully digitally controlled.
9. The specially designed drive system runs smoothly, without vibration or noise.
10. The force curve during the test is displayed in real time, and the static and dynamic friction coefficients of the sample are measured at the same time.
11. Equipped with a micro printer to print test data.
12. The test table and test slider are demagnetized and residual magnetism detected, which effectively reduces the system test error.
13. Equipped with a standard RS232 serial communication port, the test is controlled by a computer using professional computer software.
