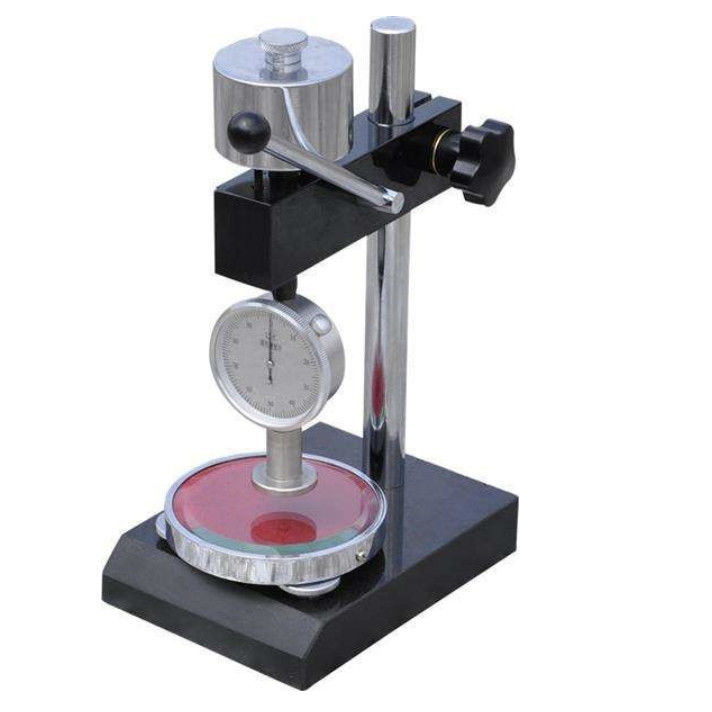

ISO 868 Plastic Shore A Hardness Tester Vulcanized Rubber Hardness Tester

Large Image : ISO 868 Plastic Shore A Hardness Tester Vulcanized Rubber Hardness Tester

Product Details:

Model Number:	LR-A047

Contact Now

ISO 868 Plastic Shore A Hardness Tester Vulcanized Rubber Hardness Tester

Description

Bench Net Weight:	12kg	Bench Size:	200mm×115mm×310mm
Press Needle End Diameter:	0.79mm±0.03mm	Press Diameter:	1.25mm±0.15mm
Press Stroke:	2.5mm±0.04
Highlight:	Rubber Shore A Hardness Tester , Plastic Shore A Hardness Tester , Vulcanized Rubber Hardness Tester

ISO 868 Shore A Hardness Tester for Plastic and Rubber

1. Overview

Shore's rubber hardness tester is used to determine the hardness of vulcanized rubber and plastic products, the hardness tester head is installed on the bench, convenient and accurate measurement, can also be used to measure the hardness tester head, in the production site, in line with ISO 868, GB/T531 "vulcanized rubber Shore A hardness test method", GB2411 "plastic Shore hardness test method" and other standards.

2. Technical parameters

Press diameter	1.25mm±0.15mm
Press needle end diameter	0.79mm±0.03mm
The Angle between the taper of the pressure needle	35°±0.25°
Press stroke	2.5mm±0.04
Dial range	0HA-100HA
Bench size	200mm×115mm×310mm
Bench net weight	12kg
