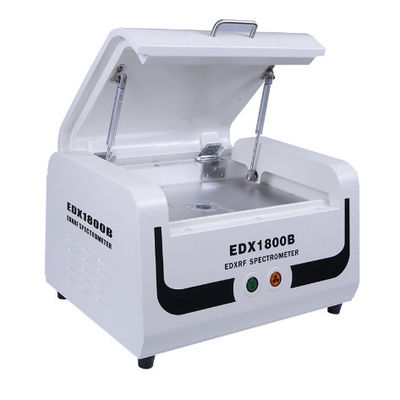

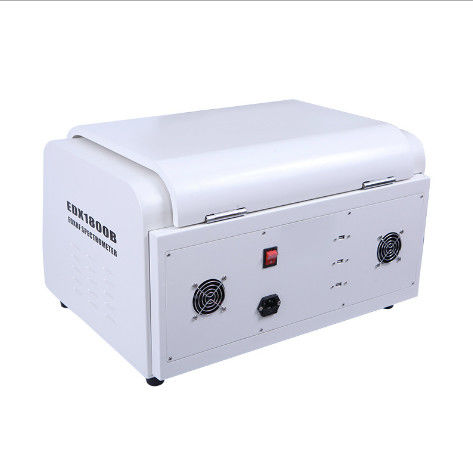

EDX 1800B Rohs XRF Analyzer X-ray Fluorescence Spectrometer
Applications
Products used for RoHS directive control: large household appliances, small household appliances, information technology and communication equipment, power tools, toys and other equipment
For halogen-free directive control products: products with flame retardants containing Cl, Br and other elements as raw materials
Instrument overview
l EDX 1800B is a product specially designed for RoHS, EN71 and other environmental protection directives.
l EDX 1800B is a popular model in the series of products, triple ray protection system; Humanized operation interface; Comprehensive application of empirical coefficient method, basic parameter method V1.0 analysis software. Element tests range from S-U. That is, the Pb, Cd, Hg, PBB and PBDE that can control RoHS directives
l Br, Cr of hexavalent chromium and Cl and Br elements in halogen-free directives. It can fully meet RoHS/WEEE/ halogen-free control requirements. Carefully designed open work curve function, especially suitable for multi-material factory process control.
l Original spectrum comparison function, real-time tracking supplier material changes and timely warning, RoHS/ halogen-free and supplier control has unparalleled advantages.
Prodcut Descripition
1. Triple ray protection (software, hardware, maze design) to ensure the personal safety of operators and radiation damage caused by accidental operations;
2. Large sample cavity design, suitable for the detection of large samples, partially replacing the handheld XRF function;
3. The new optical path design solves the negative impact of the air optical path on the measurement of Cl element to the maximum extent, and ensures the detection limit and stability of chlorine (Cl) element;
4. The newly optimized V1.0 analysis software can automatically set the optical tube power according to the sample material, shape and size, which can not only extend the service life of the optical tube but also give full play to the detector performance and greatly improve the measurement accuracy;
5. The only open work curve calibration platform in the industry, which can tailor the best harmful substances detection and control scheme for users;
6. Integrated a series of advanced spectral processing methods, including FFT (fast Fourier transform filter), accurate background subtraction method, derivative automatic peak search and Quasi-Newton optimization algorithm;
7. The international leading XRF analysis software integrates a variety of classical analysis methods, including empirical coefficient method, basic parameter method (FP method), theoretical α coefficient method, etc., to fully ensure the accuracy of test data;
8. Customized test report output format (Excel, PDF, etc.) according to user requirements, in line with various statistical and format requirements of the factory;
9. Can provide hexavalent chromium quantitative test technology and accessories, coating thickness measurement and multi-element analysis software (users need to purchase separately);
10. Multilingual software interface is available;
11. Original spectrogram comparative analysis method, supplier material changes timely warning function.
Instrument technical index
| instrument size |
550mm (W) * 410mm(D) * 320mm(H) |
| sample cavity size |
439*300*50mm |
| Test element range |
elements in S-U |
| detection range |
1ppm-99.99% |
| detection limit |
Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm |
| test sample type |
solid, powder and liquid |
| measurement time |
rapid measurement: 30 s (depending on the matrix) |
| Conventional measurement |
100s (depending on matrix) |
| resolution |
144±5 KeV |
| collimator |
with a diameter of 8.0mm, 6.0mm, 4.0mm, 3.0mm, 2.0mm, 1.0mm, 0.5mm, 0.2mm |
| filter |
5 kinds of composite filter automatic switching |
| 5 kinds of composite filter automatic switching |
|
| Input power |
AC220V ~ 240V, 50/60Hz |
| rated power |
300W |
| Net weight |
about 41.8Kg |
| working environment temperature |
temperature 10-30 ℃ |
| working environment relative humidity |
≤75% (no condensation) |
Instrument hardware main configuration
Detection system
Type: Si-PIN detector
Be window thickness: 1mil(0.0254mm) Best resolution: 144±5eV
System peak to back ratio: ≥ 6200/1
Energy response range: 1keV ~ 40keV
Recommended count rate: 5000cps
X-Tube
Voltage: 0 ~ 50 kV
Maximum current: 1.0mA
Max power: 50W Filament voltage: 2.0V Filament current: 1.7A Ray extraction Angle: 12° Target: Mo
Be window thickness: 400um
high voltage power supply
Input voltage: DC +24V±10%
Input current: 4.25A (Max.) Output voltage: 0-50KV & 1mA Maximum power: 50W
Voltage adjustment rate: 0.01% (no-load to full load) Current adjustment rate: 0.01% (no-load to full load)
Ripple voltage: The peak ripple voltage is 0.25% of the highest output voltage under the condition of rated output voltage.
8-hour stability: ≤0.05%
Special software JPSPEC-FP
Software introduction
It is specially developed for RoHS detection. The collected spectral signals are processed, calculated, and the measurement results are reported and displayed.
Function introduction
Specifically deal with the six elements Cd, Pb, Hg, Br, Cr and Cl involved in the six substances in the EU ROHS directive. The measurement time is 100-300 seconds
Simple and intuitive operation interface, easy to use, no need for professionals to operate
Suitable calibration curve can be selected automatically, which makes the measurement more convenient and accurate.
The interface between Chinese and English is automatically switched, and the third-party language customization function is provided
Automatic calibration instrument.
The qualitative analysis of sample material is provided to prevent manual user from selecting wrong curve
Various report forms are printed.
Multiple spectrograms can be displayed at the same time
The unique movement temperature monitoring technology ensures the safe and reliable operation of X-ray source, effectively prolongs its service life and reduces the use cost.
Sample configuration
The standard sample is used to make working curve
4.1 sample chamber
Open large sample cavity
4.2 standard sample
EU standard sample e60k
Pure silver sample
