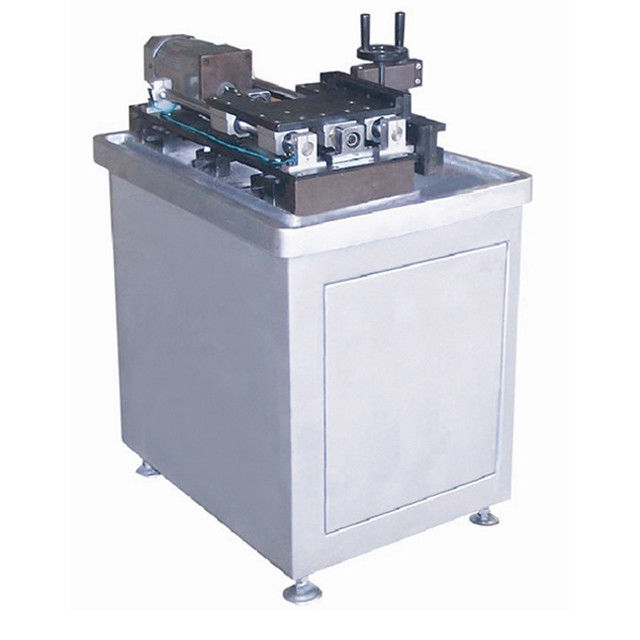

Automatic Rubber Specimen Cutting Machine ISO 6259 Dumbbell Sample Machine

Large Image : Automatic Rubber Specimen Cutting Machine ISO 6259 Dumbbell Sample Machine

Product Details:

Model Number:	LR-A038

Contact Now

Automatic Rubber Specimen Cutting Machine ISO 6259 Dumbbell Sample Machine

Description

External Dimension:	700×400×550mm	The Power Supply Voltage:	380V
Milling Speed:	2800r/min	Control Ways:	Computer Control
Port:	Shenzhen
Highlight:	Rubber Specimen Cutting Machine , Automatic Specimen Cutting Machine

ISO 6259 Automatic Dumbbell Sample Machine Rubber Specimen Cutting Machine

1.Use

The automatic dumbbell sample machine, which conforms to GB/t1040-92 GB8804.1.2 and other standards, is used for the preparation of dumbbell specimens in non-metal tensile tests, which can be used to prepare dumbbell samples of various sizes.It has a high efficiency, and the sample size is accurate.

ISO 6259,ISO 527

2. Technical specification

Process dumbbell shape and plane tool specification	φ27×φ12×φ30mm
Milling speed	2800r/min
Milling into speed	0～180mm/min
The power of the dumbbell type motor	180W
The dumbbell shapes the motor power	60W
The power supply voltage	380V
External dimension	700×400×550mm
Size of sample preparation
Sample thickness	0～10mm
Sample length	250mm
