ISO 6964 Carbon Black Content Tester Apparatus For Polyolefin Plastic

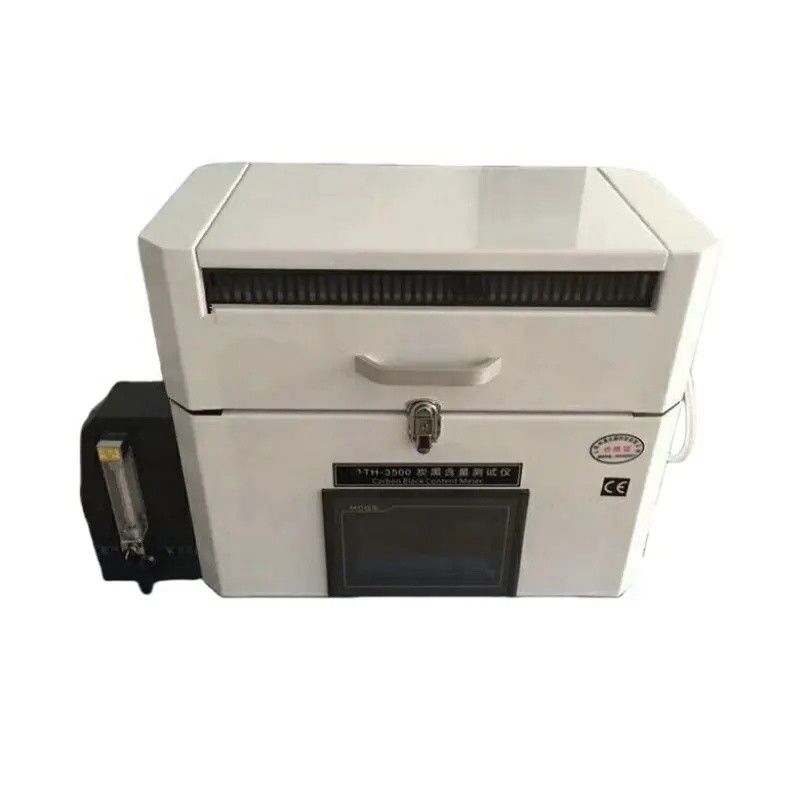

ISO 6964 Carbon Black Content Tester for Polyolefin Plastic

1. Application

Suitable for the determination of carbon black content in polyethylene, polypropylene and polybutene plastics.The measurement of carbon black was obtained by gravimetric analysis of samples decomposed at high temperature under the protection of nitrogen.The instrument has the advantages of convenient use, simple operation, accurate measurement, high precision and high degree of automation.

2. Conformance to standards

ISO 6964, GB/T13021, IEC 60811-4-1, GB/T 2951.41, JTG E50 T1165, ASTM D1603-94, GB/T13021-1991, etc.

General Test Methods for Insulation and Sheath Materials for Cables and Optical Cables

"Determination of Rubber Carbon Content -- Pyrolysis Method"

Measurement Instrument for Carbon Black Content of Polyethylene Pipes and Fittings (Thermogravimetric Method)

"Test Methods for Copper-Core Polyolefin Insulated Comprehensive Aluminum-Plastic Sheathed Municipal Communication Cables - Part 3: Test Methods for Mechanical and physical properties"

Polyethylene (PE) piping systems for water supply - Part 2: Tubing

3. Specification

4. Standard Configuration

5. Instrument Features

Instrument appearance structure is beautiful, operation is simple;

The furnace door structure is open type, which is convenient to place the sample and determine the best position of the sample.

7 "LCD touch screen display, high-end atmosphere

High degree of automation, only need to set the temperature and heating time, the instrument automatically heating to the set value;Real-time display of temperature curves on the screen.

High temperature control precision, large temperature range, high furnace temperature uniformity;

Excellent constant temperature function, and can set the constant temperature time, constant temperature accuracy is high;

The instrument can set 30 groups of different heating time periods, with different heating temperature, heating rate and constant temperature time.

The parameter display is comprehensive, showing the set number, theoretical temperature, actual temperature, heating time (or constant temperature time)During the operation of the instrument, the parameters set and the time of heating or constant temperature can be checked.
