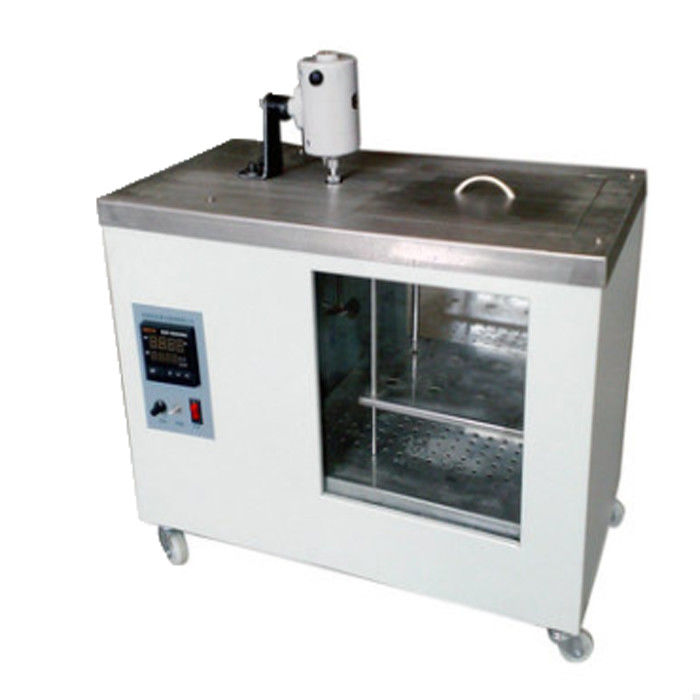

Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

Large Image :  Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

Product Details:
Model Number: LR-A28
Chat Now

Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

Description
Power Supply: 220V 50Hz Heating Power: 3KW
Tank Size: 420*305*375mm (length * Width * Height) Overall Dimension : 605*330*610mm (length * Width * Height)
Adjustable Temperature Range: Room Temperature -100℃
Highlight:

Environmental Stress Cracking Test

,

Stress Cracking Tester ESCR

,

Plastic Stress Cracking Tester

ASTM D1693 Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

1. Overview

Environmental stress cracking tester is mainly used to measure the stress cracking capacity of ethylene - based resins and plastics.

2.Applicable Standards

GB/T1842, GB/T2951.41, ASTM D1693

Instrument Features

1. The shell of this product is made of high-quality cold-rolled plate with plastic-sprayed surface.

2. The inner tank, upper cover and test-tube stand are made of 304 stainless steel, which are resistant to corrosion and durable.

3. Sample retainer brass material, machined slotted (non-stainless steel plate bending).

4, PID special temperature control instrument table, accurate temperature control, stable performance, easy to operate.



Technical Parameters

Adjustable temperature range

  room temperature -100℃
Temperature control accuracy  ±0.5℃
Blade length  19mm
Blade height  3mm
Blade thickness  0.24mm
Notch depth  0.3-0.65mm
Sample specifications  length
Specimen retainer width  12±0.05mm, 11.75±0.05mm (optional)
Tank size  420*305*375mm (length * width * height)
Overall dimension  605*330*610mm (length * width * height)
 thermal medium  pure water
Ambient temperature  10-40℃)
Power supply  220V 50Hz
Heating power  3KW

Configuration List

Serial Number



Name

Units

Quantity

Remark

1



Thermostatic Bath



PCS



1



2



Test Tube Stand



PCS



1

8 station, expandable





3



Nick Device



PCS

1



4

Test Tube



PCS

3



5

Cutting Tool For Processing Sample

PCS

1

38* 13mm

6

Sample Retainer





PCS

3

1. There are two options for the width of the inner slot: 12+ -- 0.05mm;11.75 + 0.05 mm

2. A maximum of 10 samples can be placed in each sample cage

7

Sample Bending Device

PCS

1



8

Sample Transfer Tool

PCS

1



9



Blade



PCS



3



10

Specification

PCS

1



11

Packing List

PCS

1



12

Certificate



PCS

1
