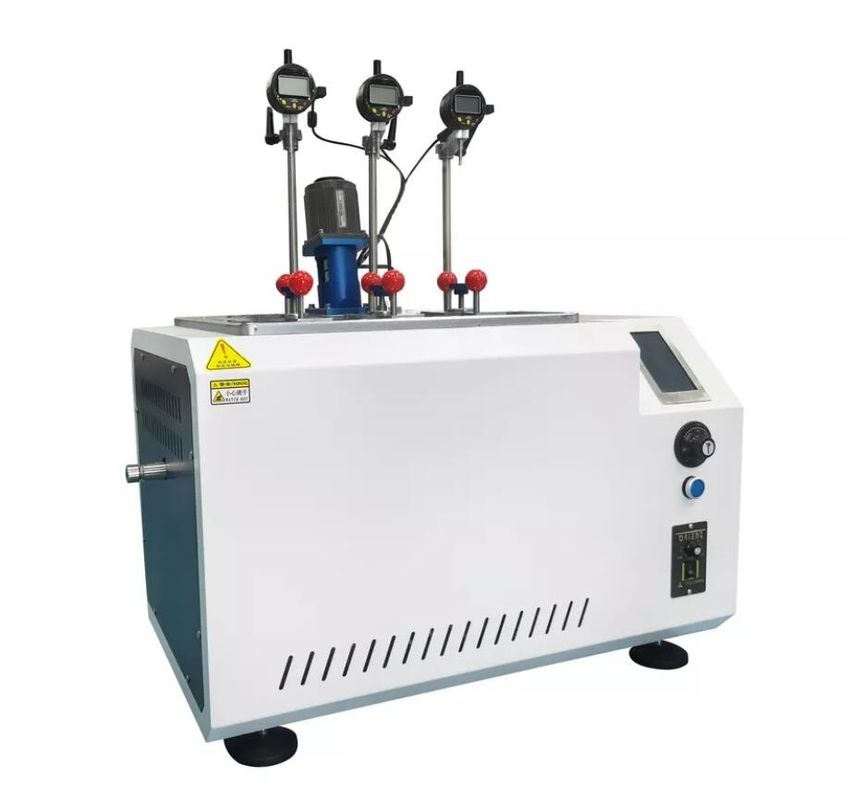

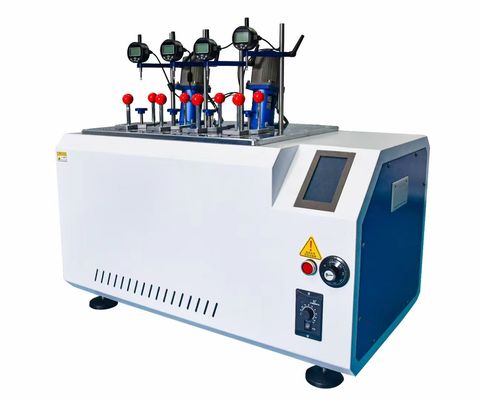

ASTM D 648 HDT Vicat Testing Machine Thermal Deformation Vicat Tester

ASTM D 648 Touched Screen Control HDT Vicat Tester Thermal Deformation Vicat Tester

1. Product Introduction

  Thermal Deformation Vicat, Softening Point Temperature Tester is using PLC programmable controller temperature adjustment using touch screen operation.The product is simple to operate, easy to use, stable performance, high precision products, and in the test process can be real-time monitoring of the test temperature and deformation;The system automatically stops heating at the end of the test.This series of models is the quality inspection units, colleges and universities and enterprises to check the necessary instruments.

2. Product Character

  This machine is mainly used for measuring the thermal deformation temperature and veka softening point temperature of non-metallic materials such as plastic, rubber, nylon and electrical insulating materials.

3. Test Standard

GB／T1633<Determination of vika softening temperature (VST) of thermoplastic>

GB／T1634<Determination of plastic load deformation temperature - part 1: general test method>

GB/T8802<Determination of softening temperature of plastic pipe fittings>

IS075-2013<Measurement of plastic load deformation temperature>

ASTM D 648<Test method for temperature of plastic thermal deformation>

ASTM D 1525<Plastic Vicat softening test method.

4. Product Advantage

Intelligent PID regulation, accurate heating rate, accurate temperature control and no difference

Can perform thermal deformation test of a variety of standard splines

Can perform vicar softening point test of a variety of standard splines

Can simultaneously perform thermal deformation and Vicar softening point test

Calculates the required load automatically based on the test standard and spline size

Selects two heating rates, free switch and simple operation

Tests completes or exceeds the temperature upper limit and switches off the temperature control

 Has both software overtemperature protection and external mechanical overtemperature protection to facilitate testing.

5. Technical specification

Ø Temperature control range:Normal temp—300℃

Ø Heating speed:(120±10)℃/h  (12±1)℃/6min

                    (50±5)℃/h   (5±0.5)℃/6min

Ø Temperature indication error:0.1℃

Ø Temperature control accuracy:±0.5℃

Ø Maximum deformation indication error:±0.001mm

Ø Deformation measurement range:0—2mm

Ø Number of sample frames:3pcs

Ø Load rod and tray weight:68g

Ø Test span range: according to the standard 64 or 100mm

Ø Heating medium: methyl silicone oil or transformer oil

Ø Cooling method: more than 150 natural cooling, 150 under water or natural cooling

Ø Heating power:4kw

6.Accessories

1.Electric control box              1pcs

2. Host Machine                  1PCS

3.Sample stand                   3PCS

4. Hot deformation pressure head   3PCS

5. Vicat needles                   3PCS

6. weight (including box weight)     3 sets (attached table)

7. Multi-purpose power socket      1PCS

7.Attached form :(accept non-standard customization)
