380V Small Meter Device 9KW Float Glass Iris Detector Test Machine

Description

Rated Voltage:	380V	Rated Power:	9KW
Sample Size:	100*100mm	Sample Bin Size:	400300200 (LWH)
Lead Time:	7 Working Days	Power Source:	AC220V / 50Hz / 3.0KW
Highlight:	Float Glass Iris Detector , Small Meter 9KW , 380V Small Meter

Float Glass Iris Detector Test machine Device For Float Glass

1. Introduction

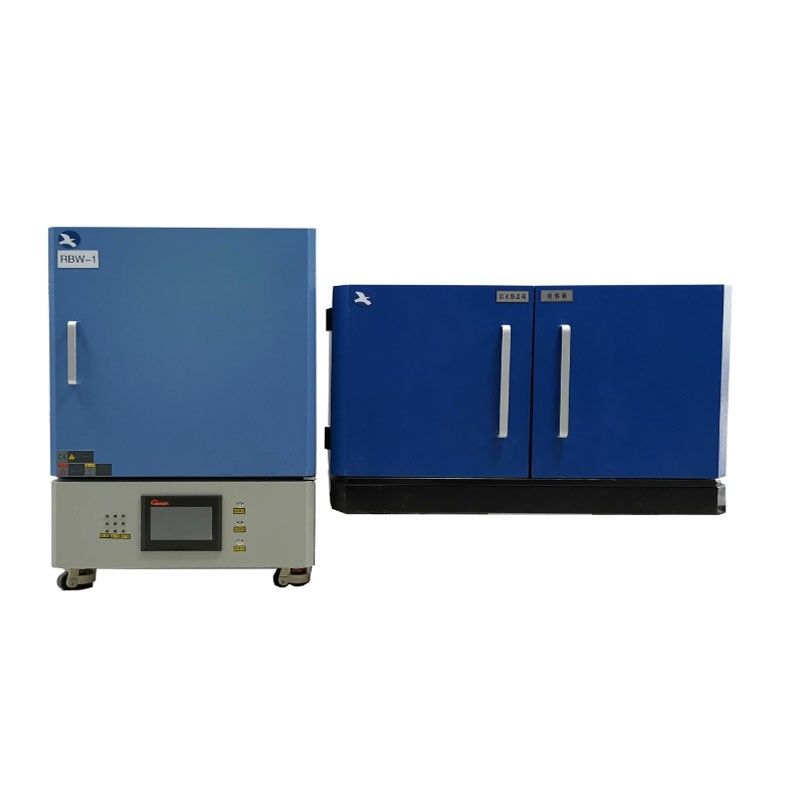

RBW-1 float glass iris detector is used to detect float glass iris according to the technical requirements of the newly revised float glass national standard. The instrument is composed of heating device, annealing device and observation device.

2. Technical Parameters

Rated voltage	380V
Rated power	9KW
Temperature control range	Room temperature ~1150ºC
Heating element	HRE
Sample bin size	400300200 (LWH)
Rate of heating	0-20ºC/ min (adjustable)
Temperature control accuracy	Plus or minus 0.2% or less
Furnace temperature fluctuation	+ / - 1 ºC or less
Mode of control	Smart touch screen
Sample size	100*100mm
Number of samples per test	4 pieces

Configuration listing
Heat treatment furnace: 1 set
Annealing observation box: 1 set
Sample holder: 2 PCS
Pallets: 4
Forks: 1
Polarizer: 1
