1. Equipment introduction
The GOT-1 type float coated glass online transmittance and chromatic aberration detection instrument is an instrument used to test the transmittance and chromatic aberration of float glass, online coated glass and offline coated glass online coated glass, and can scan and detect the transmittance of glass online.

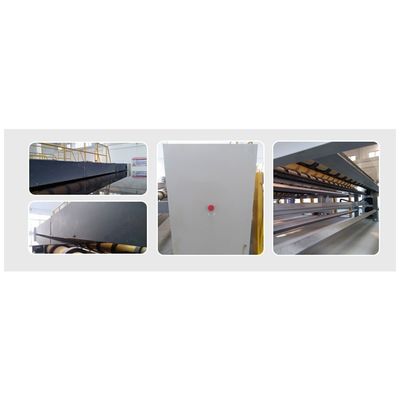

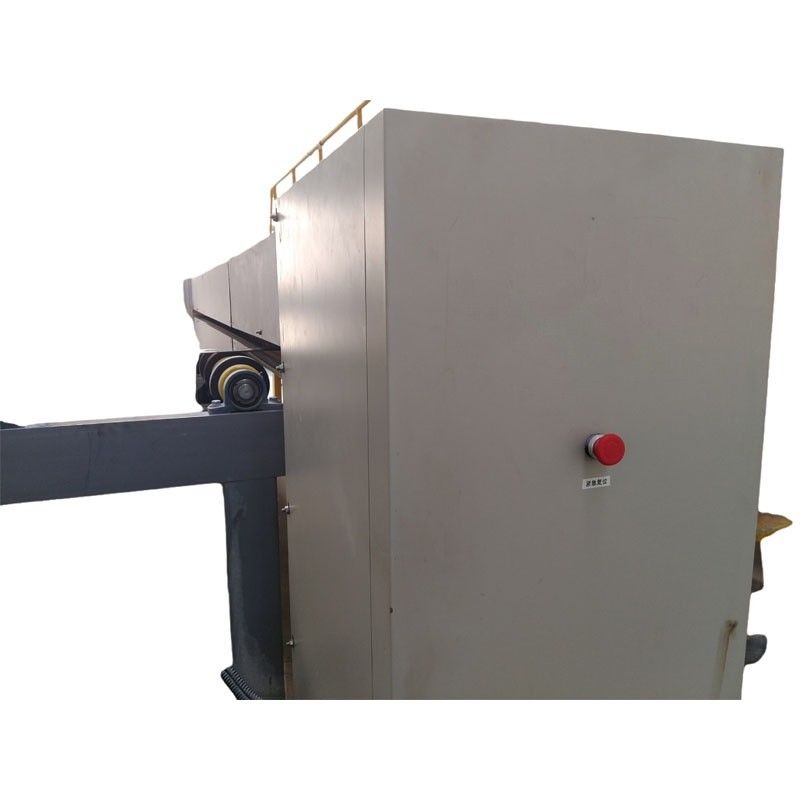

This system consists of a transmission system, a testing system, a communication system and a control computer. Can be customized according to production needs to adapt to production lines of different widths.
2. System features
1. Anti-ambient light interference
2. Uninterrupted horizontal scanning test
3. Adopt industrial computer control, with good scalability
4. The system core components have good stability, such as: spectrometer, optical fiber and light source, are imported from original products.
3. Equipment functions.
1. You can test the spectral transmittance of 380~780nm and display the spectral transmittance curve.
2. Automatically calculate the effective integral transmission ratio of visible light of D65 light source and display it in real time on the screen.
3 You can test and record the transmittance of each horizontal plate scan, including the maximum value, minimum value and average value.
4. The color value of each test point and the color difference of the entire sample can be tested.
5. You can set the horizontal plate width to continuously scan, or you can manually specify the position and vertical continuous test.
6. All data is saved in the database.
7. All test operations are automatically performed through the control computer.
8. The control computer is equipped with an automatic recovery system. Even if the system crashes, it can be restored in a short time. All data is stored on disk D. After the system is restored, the original data will not be lost.
