Automatic Glass Curvature Test Machine For Various Flat Glass

Automatic Glass Curvature Tester Test machine for Various Flat Glass
1. Equipment introduction
This equipment has applied for a national utility model patent, patent number: ZL202022245692.X. The equipment uses an optical non-contact probe to scan the glass surface, measure and calculate the bending value of the glass, and draw the bending curve of the sample to be measured.

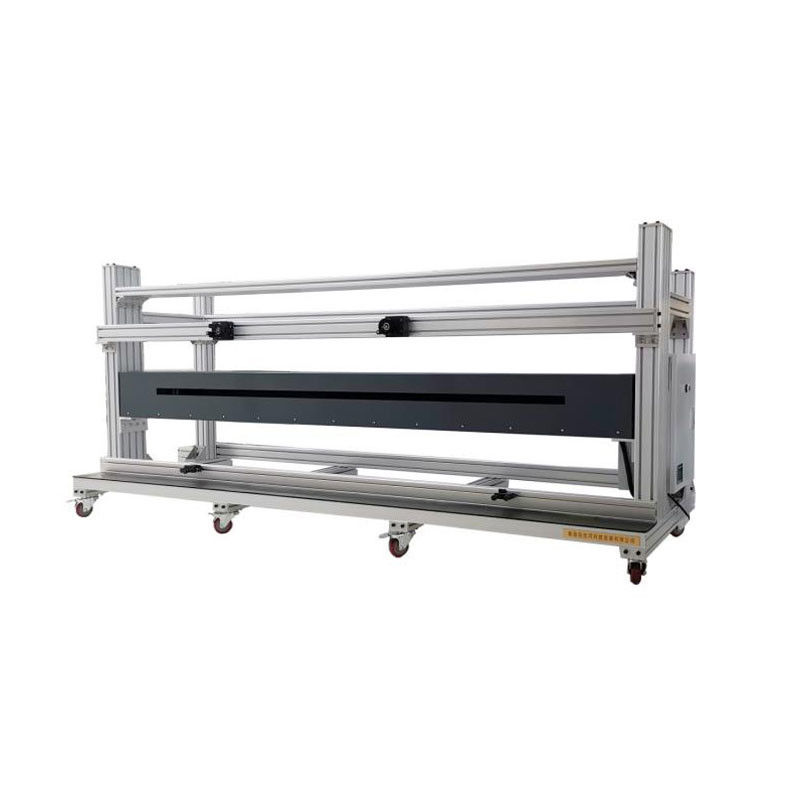

BOW-1 glass curvature automatic tester is a brand new device for detecting glass curvature. The system is mainly composed of a main structure, a sample table, a mobile module, an optical unit, and a control system.
1.2 System features
1.2.1 Good repeatability, offline detection, and repeated verification of glass curvature data.
1.2.2 High stability, low equipment failure rate, easy recovery after a failure.
1.2.3 Good security, multiple security protections are set up in the equipment.
1.2.4 It has wide applicability and can be used in both factories and laboratories.
1.2.5 The test range is wide. This equipment is suitable for the bending detection of various flat glasses, and can be measured with glasses of different thicknesses.
1.3 Device functions
1.3.1 The curvature curve of the sample to be tested can be displayed.
1.3.2 Display the sample test results in real time, including the length of the glass sample to be tested, the sample bow bend thousandth and the maximum bow bend position.
1.3.3 The results of multiple tests can be displayed.
1.3.4 Test data can be saved or read, test reports can be automatically generated, and can be printed directly
