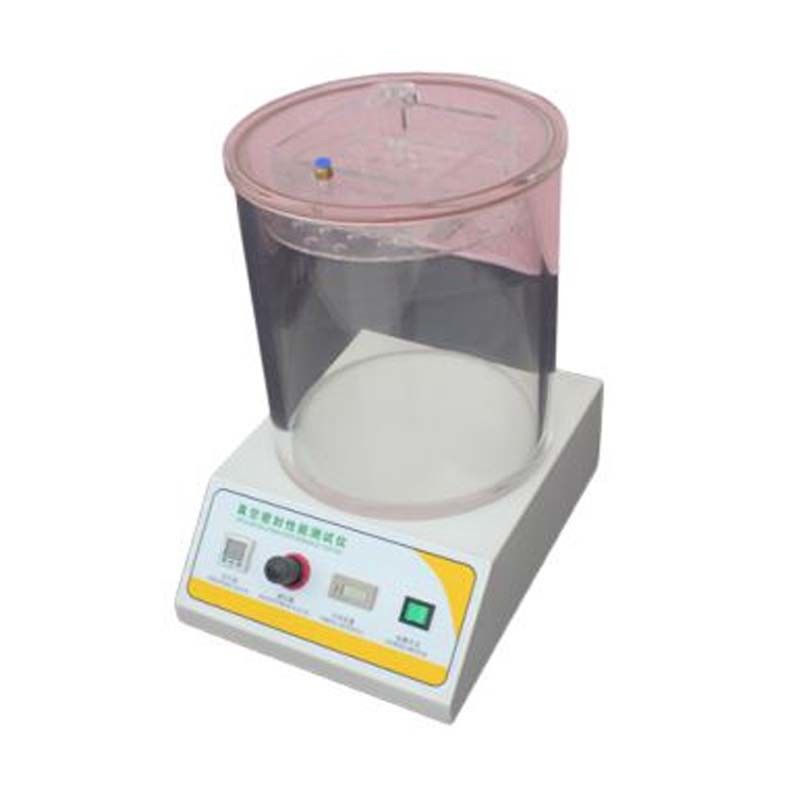

ASTM D3078 Digital Display Vacuum Sealing Performance Tester

ASTM D3078 Digital Display Vacuum Sealing Performance Tester

1. Product use
 Suitable for food, pharmaceutical, medical equipment, daily chemical, automobile, electronic components, stationery and other industries of packaging bags, bottles, tubes, cans, boxes and other sealing test.It can also test the sealing performance of the specimen after the drop and pressure test

2. Test principle
By vacuuming the vacuum chamber, so that the sample immersed in water produced internal and external pressure difference, observation of the sample gas escape, in order to determine the sealing performance of the sample;By vacuuming the vacuum chamber, the pressure difference between inside and outside of the sample was generated, and the shape recovery of the sample was observed after the expansion of the sample and the release of the vacuum, so as to determine the sealing performance of the sample.

3. Product features
1. Electronic control pressure holding, PVC operation panel
2. High-quality thickened plexiglass sealed barrel with wall thickness of 15mm
3. Precision pneumatic components, superior sealing performance
4. Pressure digital display, instant and accurate
5. Electronic pressure holding switch, easy to operate, longer pressure holding time
6. Built-in time display, keeping pressure time at a glance

4. Technical parameters

True void	-90 ~ 0kPa
Fineness	Level 1
Vacuum chamber effective size	Φ270mm×270 mm (H) (standard)
Air pressure	0.7Mpa (supplied by the user)
Air source interface	Φ8 polyurethane tube
Overall dimension	420mm(L)×320mm(B)×520mm(H)
Power source	AC 220V 50HZ
Net weight	15kg
Standard configuration	main engine test sealed drum air source line
According to standards	GB/T 15171, ASTM D3078
