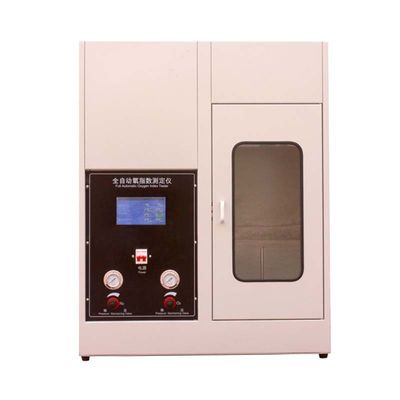

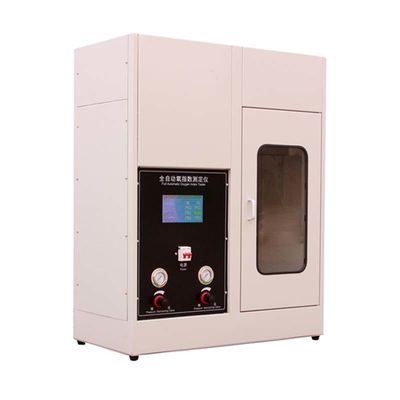

ISO 4589 Automatic Oxygen Index Test Machine Full Color Touch Screen Control

ISO 4589 Automatic Oxygen Index Test Machine Full Color Touch Screen Control
ISO 4589 Automatic Oxygen Index Test Machine Full Color Touch Screen Control ISO 4589 Automatic Oxygen Index Test Machine Full Color Touch Screen Control

Large Image :  ISO 4589 Automatic Oxygen Index Test Machine Full Color Touch Screen Control

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-JF-6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 pieces
Contact Now

ISO 4589 Automatic Oxygen Index Test Machine Full Color Touch Screen Control

Description
Overall Dimensions: 80cm*40*102cm Input Pressure: 0.25-0.3mpa
Display Accuracy: ±0.01 Resolution: 0.01MPa
Highlight:

Automatic Oxygen Index Test Machine

,

Touch Screen Oxygen Index Test Machine

ISO 4589 Full-color Touch-screen Automatic Oxygen Index Tester
1. Product advantages
1. Full-color touch screen control, as long as the oxygen concentration value is set on the touch screen, the program will automatically adjust to the oxygen concentration balance and issue the sound of beep, eliminating the trouble of manually adjusting the oxygen concentration;One key calibration oxygen concentration, data storage
2. The stepping proportional valve is adopted to greatly improve the control accuracy of flow rate. The closed-loop control is adopted to automatically adjust the oxygen concentration drift program back to the target value during the test.
3. The equipment has its own fume hood, which can automatically exhaust smoke;


2. The main technical parameters

1.Imported oxygen sensor, digital display oxygen concentration without calculation, higher accuracy and more accurate, range 0-100%
2.Display accuracy: ±0.01
3.Touch screen setting program automatically adjusts oxygen concentration
4.One key calibration accuracy
5.One bond ratio
6.Stable oxygen concentration automatically prompts alarm sound
7.With timing function
8.Experimental data can be stored
9.Historical data can be queried
10.Clear historical data
11.Optional whether to burn 50mm
12.Air source fault prompt
13.Oxygen sensor fault indication
14.Oxygen nitrogen wrong connection prompt
15.Oxygen sensor aging tips
16.Standard oxygen concentration input
17.Diameter of combustion cylinder can be set (two common specifications are optional)
18.Flow regulation range: 0-20l /min (0-1200l /h)
19.Quartz glass tube: two specifications either (diameter≥ 75 mm or inner diameter ≥ 85 mm)
20.Gas velocity in combustion cylinder: 40mm ± 2mm/s
21.Overall dimensions: 80cm*40*102cm
22.Automatic smoke exhaust pipe outer diameter: 7.6cm
23.Pressure gauge accuracy 2.5, resolution: 0.01MPa
24.Test environment: the environment temperature: room temperature ~ 40 ºC;, relative humidity: no more than 70%;
25.Input pressure: 0.25-0.3mpa
26.Working pressure: nitrogen 0.15-0.20mpa oxygen 0.15-0.20mpa
27.Propane (butane) ignition system, the ignition nozzle is made of a metal, the end has Φ 2±1 mm inner diameter nozzle, can be bent freely.Can be inserted into the combustion cylinder to ignite the sample, the flame length: 16 ± 4mm, the size of 5mm-60mm can be adjusted freely,
28.Gas: nitrogen and oxygen for industrial use, purity of > 99%;(the purity of industrial oxygen in user-provided/normal gas stations is generally between 99.2% and 99.3%).
