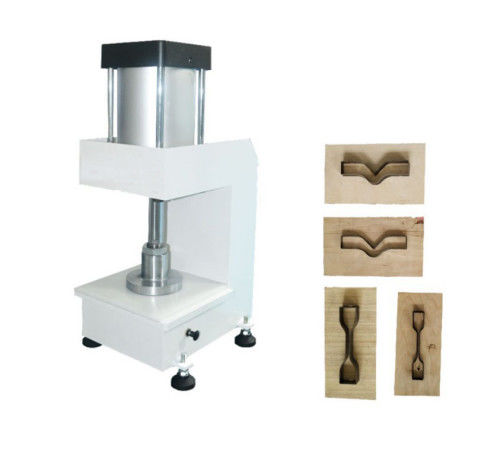

ASTM D-638 Pneumatic Punching Machine Tensile Sample Cutter

ASTM D-638 Pneumatic punching machine Tensile test Sample Cutter

1.Overview

This pneumatic slicer is mainly used for rubber standard test pieces. It should be combined with standard cutting die to connect air source above 4KG

2.Machine specifications

 3.Operation

1. Put the slicer on the plane, adjust the four pins to make it smooth, and put the cutting adhesive.

2. Open the air source, adjust the valve switch of the oil and water separator behind, and adjust the barometer to be at least 4KG

3. Put PU adhesive on the film, put the cutting adhesive on the film, put the cutting die on the film, then press the red button switch with both hands at the same time (for safety, both hands must be pressed at the same time), press the pressure plate down to the cutting die, stay for a few seconds, let the rubber fully cut off, and then let go, take out the sample.

4. Please turn off the air source after using up.
