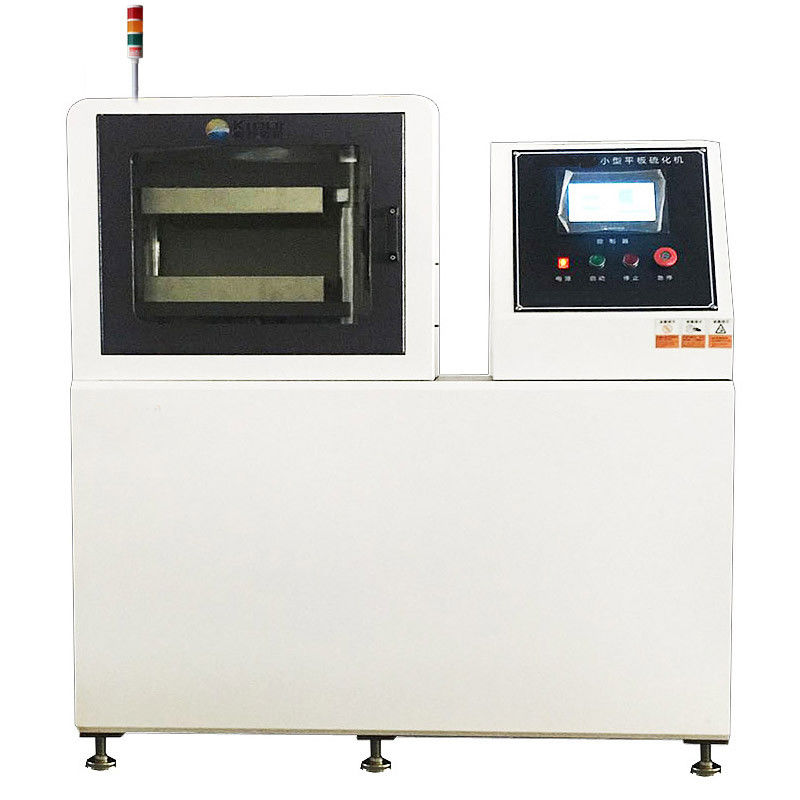

Electronic Rubber Plate Vulcanizing machine Rubber Vulcanizer

Electronic Rubber Plate Vulcanizing machine Rubber Vulcanizer
Electronic Rubber Plate Vulcanizing machine Rubber Vulcanizer

Large Image :  Electronic Rubber Plate Vulcanizing machine Rubber Vulcanizer

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-A014
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000-3000
Packaging Details: Wooden Package
Delivery Time: 5-8 work days
Payment Terms: L/C D/A D/P T/T Western Union
Supply Ability: 200 pieces
Contact Now

Electronic Rubber Plate Vulcanizing machine Rubber Vulcanizer

Description
Weight: About 720kg Volume : (W×D×H)1600×650×1560 Mm
Cylinder Stroke: Max 300mm Temperature Controller: PLC Touch Screen
Highlight:

Rubber Plate Vulcanizing machine

,

Electronic Vulcanizing machine

,

Electronic Rubber Vulcanizer

  1. Electronic  Rubber Plate Vulcanizing machine Rubber Vulcanizer
  2. 1. Overview

This series of plate vulcanizing machine is used for pressing all kinds of rubber model products and non-model products, and also can be used for pressing all kinds of thermosetting plastics and foaming rubber and plastic products.With independent power mechanism and electrical system, using the button control.Working pressure and heating temperature can be adjusted within a certain range.This machine is divided into two types: manual and semi-automatic



2. Application industry

Laboratory small plate vulcanizing machine is also called hot press molding machine, mainly used for rubber, plastic products sample making experiments, such as: tensile test, impact test, compression test sample preparation.

Plastic industry: laboratory sample making, small batch trial production, research and development,PPT,PE,PVC and so on.

Rubber industry: laboratory sample making, small batch trial production, research and development, natural rubber, silicone, silicone rubber, etc.

 3.Technical parameters

capacity  5-30ton adjustable [with automatic exhaust function]
temperature range  normal temperature ~ 300℃
temperature accuracy  ±1.5℃
Temperature controller  PLC touch screen
temperature control mode  PLC touch screen
heater  electric heat pipe heating
Working mode  electric heating.Heating mode
heating time  room temperature ~ 160℃ about 15min
timer  PLC display, 0.01s ~ 999min ~ 999hr (adjustable)
two layer hot pressing plate  350×350mm (high hardness steel plate with special treatment) electric heating.
exhaust function  low pressure automatic exhaust a minute 3 ~ 10 times adjustable
 hydraulic system  proportional hydraulic flow closed loop control system, GPY oil pump (Japanese) drive high performance electric hydraulic with high precision of the resistance of cylinder piston implementation such as speed control mode (travel height can be set in a single freedom) with automatic pressure compensation function, pressure time can be preset, load power, steady lifting, automatic pressure, pressure, pressure relief
cylinder stroke  Max 300mm
cylinder speed  11mm/s
pressure gauge  0 ~ 200kg/sq.cm
volume  (W×D×H)1600×650×1560 mm
Power source  3∮, AC380V, 15A
weight about 720kg
