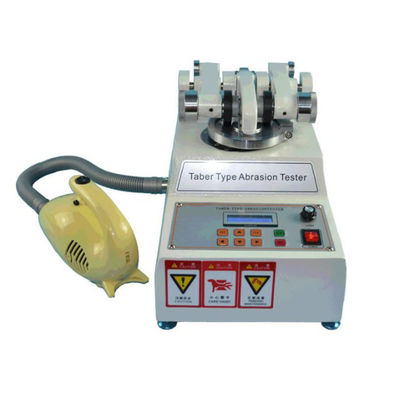

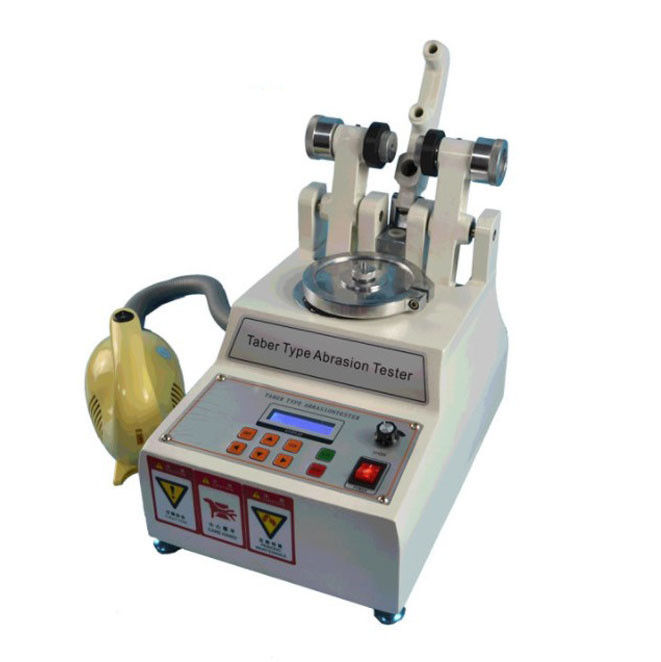

ASTM D4060 Taber Abrasion Tester Machine Wear Resistant Tester

ASTM D4060 Taber Abrasion Tester Wear-Resistant Test

1. Uses

This machine is used to do the test of wear-resistant in surface, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber,concrete and ceramics. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased. Remove the specimen after rotation to reach a centain number, and then observe the condition of the specimen or compare the weight with the previous materials.

2.Test Standard

ASTM D4060/D4157/D1044, ISO 7784,JIS K5400/K7024, CNS 8540, BS EN 660-2,DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D3884,D1175

3. Theory

The machine supports a pair of grinding wheels with a rotating sample and a specified load is applied to drive the grinding wheel while the sample is rotating so as to wear the sample.

4.Specifications
