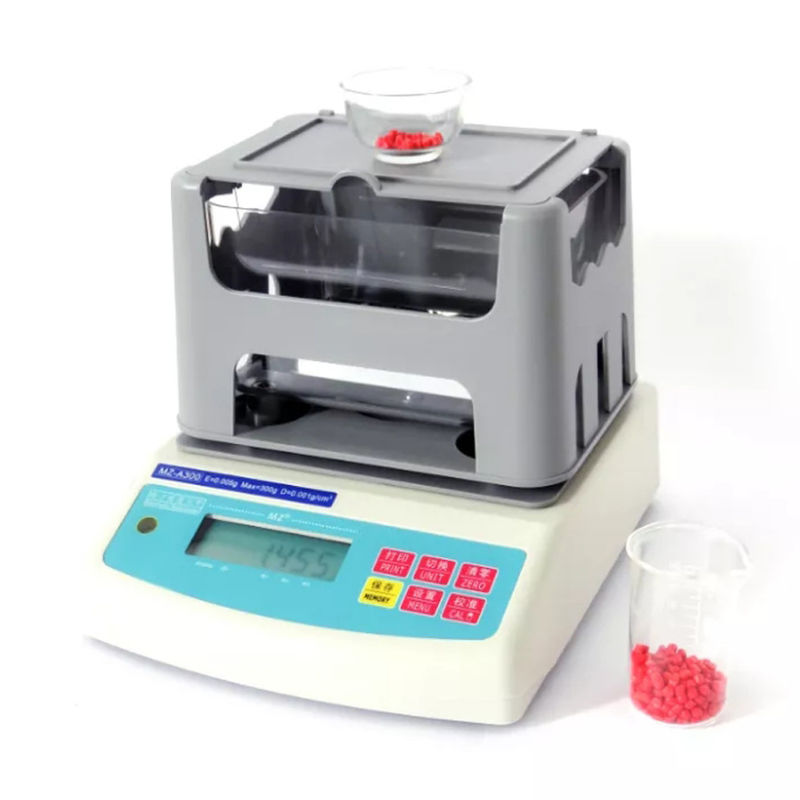

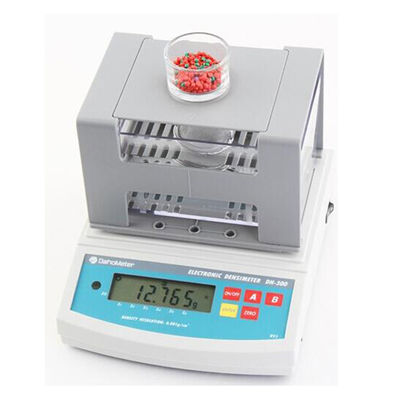

ASTM D792 Densimeter Density Meter
- Product introduction
Rubber, wire and cable, aluminum products, plastic particles, powder metallurgy, mineral and rock, precision ceramics, glass industry, metal products, precision ceramics, refractory materials, magnetic materials, alloy materials, machinery parts, metal recovery, minerals and rock, cement manufacturing, jewelry industry and other new materials research laboratory.
2. Reference standards
Based on: ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183...And other standards.
Three, the principle: using Archimedes principle of buoyancy method, accurate, direct reading measurement value.
3. Technical Specification
|
Weigh measure range
|
0.005g~ 300g
|
|
Density accuracy
|
0.005 g/cm3
|
|
Measure time
|
About 10s
|
|
Seting
|
Temperature compensation setting, solution compensation setting
|
4. Functional features
l Gold-plated ceramic capacitance sensor;
l With the density testing device, liquid and solid density testing can be realized;
l Density direct reading, subtracting tedious calculation;
l Standard RS232 data output function can be easily connected to PC and printer.;
l Automatic zero tracking, buzzer alarm, overload alarm function
l Air mass of the measured object: ≥0.25g;
l Buoyancy force of the measured object in the air: < -0.125;
l Dimensions, 270*200*265;Weight;6.5 kg
l Dimensions of integrated sink,165*115*85
l Blue backlight liquid crystal display;
5. Random accessories
① host, ② sink, ③ measuring table, ④ tweezers, ⑤ instructions, ⑥ weights, ⑦ windproof and dust cover, ⑧ a set of measuring particle accessories, ⑨ a set of measuring floating body accessories, and 10 power transformers
