ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine

ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine
ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine

Large Image :  ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-A008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000-3000
Packaging Details: Wooden Package
Delivery Time: 5-8 work days
Payment Terms: L/C D/A D/P T/T Western Union
Supply Ability: 200 pieces
Contact Now

ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine

Description
Control Mode: Computer Control Power Supply: AC220V 50Hz
Entering Stroke: 10mm Knife Stroke: 24mm
Knife-entering Max Speed: 4mm/min
Highlight:

Notch Sample Machine

,

Nonmetal Impact Test Machine

,

Sample Impact Test Machine

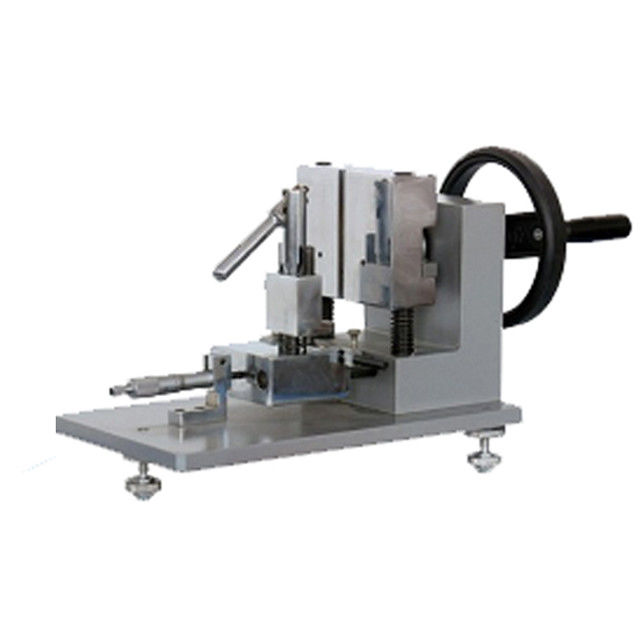

ISO180 Notch Sample Machine Use for Nonmetal Material Impact Test

  1. Uses

Manual Notch Sampling Machine is a sample cutting machine when doing nonmetal material impact test by IZOD tester.This machine is used in scientific research, universities and colleges and nonmetal material factory.This machine is designed by ISO179-1993.ISO180-1993 and GB/T1043-93,GB/T1843-1996.

2.Specifications



Knife stroke

24mm

Knife-entering max speed

4mm/min

Sample mode

1 mode,2 mode,3 mode

Notch mode

A mode,B mode,C mode

Knife specification



A mode knife:45±1 angle, r=0.25±0.025

B mode knife:45±1 angle, r=1.0±0.025

C1 mode knife:45±1 angle, r=0.1±0.02

C2 mode knife:thickness 1=2±0.1 r≤0.1

C3 mode knife:thickness 2=0.8±0.1, r=0.2±0.05

Entering amount

0.5mm/stroke   r=0.2±0.05

Entering stroke

10mm
