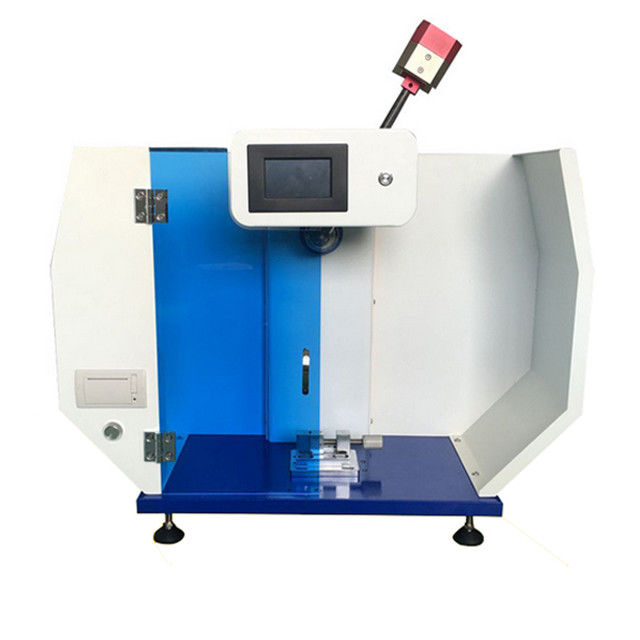

Digital IZOD Charpy Impact Testing Machine ISO179 ASTM D256

ISO179 ASTM D256 IZOD& Charpy Impact Tester

1. Uses

This instrument for new multi-function IZOD&Charpy impact tester, without having to remove the jig and sample fixed frame, cantilever beam, the test method for automatic switch, easy to use, simple operation, high measurement precision, it is mainly used for hard thermoplastic moulding and extrusion materials, rigid thermosetting molding materials as well as the fiber reinforced thermosetting and thermoplastic composites non-metallic materials, such as the determination of impact toughness.

2. Character

 cantilever beam, one-piece shock, do not need to remove the clamp and fixed sample

intelligent controller has high precision, and is equipped with LCD display, can be intuitive, accurate reading data

the first domestic use carbon fiber beam (has applied for patent), on the direction of impact, improve the rigidity of materials, and will impact the quality of concentrated in the largest pendulum on the center of mass of truly no vibration impact test, and increase the service life.

imported high resolution digital encoder, Angle test precision is higher and more stable

aerodynamic impact hammer and imported ball bearing, greatly reduced the mechanical friction loss

automatically calculate the final result, test data can be stored 24 group data and averaging

can choose Chinese and English operation interface, test results can choose J/m, KJ / ㎡, kg - cm/cm, ft - ib/in etc

Internal microtyping of the printing and testing data

3. Test standard

ISO179-2000 "plastics - determination of impact strength of the simply supported beam with hard material,

GB/T 21189 < plastic beam and cantilever beam and tensile impact test with a pendulum impact testing machine test >

GB/T1043-2008 "the hard plastic beam impact test method"

JB/T8762-1998 plastic beam impact testing machine,

GB/T 18743-18743 "with thermoplastic fluid conveying pipe beam impact test method" (applicable to pipe)

ISO180-2000 "plastics - determination of hard material cantilever beam impact strength

GB/T1843-2008 "the hard plastic cantilever beam impact test method"

JB/T8761-1998 plastic cantilever beam impact testing machine,

ASTM D256-2010 "test method for determination of plastic the IZOD pendulum impact strength,

GB - T13525-1992 "plastic tensile impact test method for performance"

4.Technical Specifications
