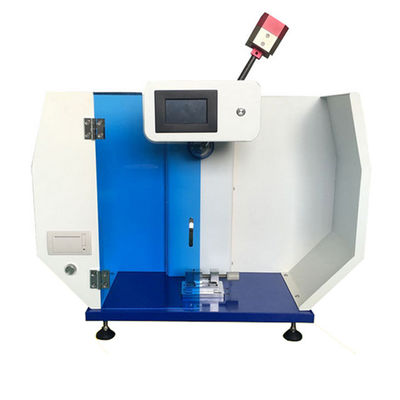

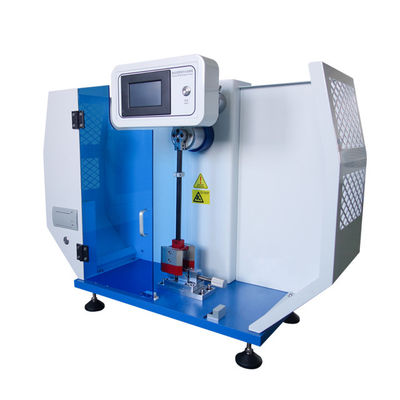

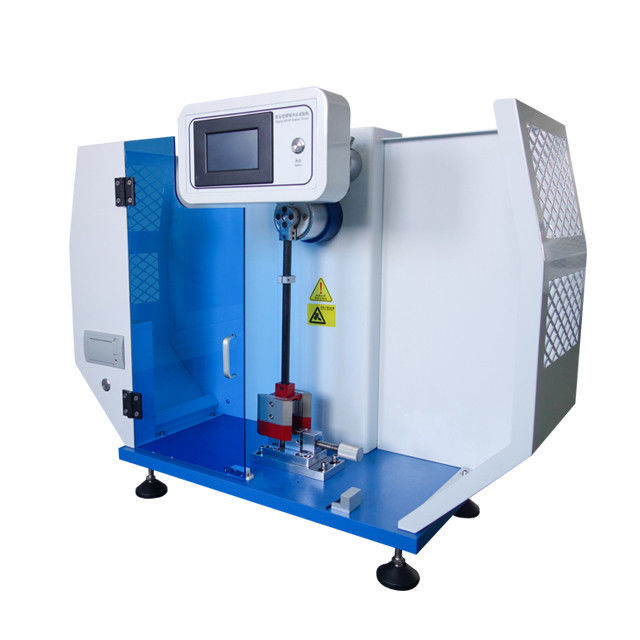

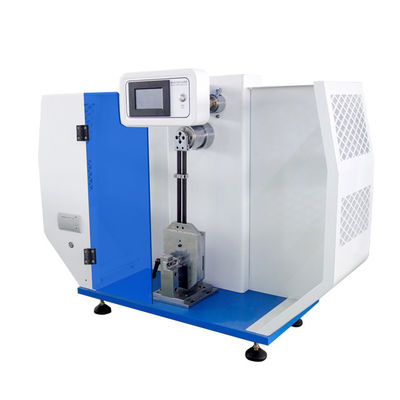

Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester

I'm Online Chat Now

Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester

Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester
Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester

Large Image :  Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-A003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000-3000
Packaging Details: Wooden Package
Delivery Time: 5-8 work days
Payment Terms: L/C D/A D/P T/T Western Union
Supply Ability: 200 pieces

Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester

Description
Application: Plastic Industry Usage: Material Testing
Software: Included Control Mode: Computer Control
Display: Digital LCD Power Supply: 220V, 50Hz
Highlight:

Digital Plastic Test Machine

,

Glass Fiber Plastic Test Machine

,

ReinforcedPlastic Impact Tester

ISO 179 Plastic Test Machine for Impact Testing of Hard and Glass Fiber Reinforced Plastic

1 Uses

Digital charpy impact testing machine is mainly used in hard plastic, reinforced nylon, glass fiber reinforced plastic, ceramic, cast stone, electrical insulating materials of nonmetal materials to the determination of impact toughness.Is the chemical industry, scientific research units, colleges and universities, quality inspection departments such as the ideal test equipment.

2 Character

1,Intelligent controller has high precision, and is equipped with LCD display, can be intuitive, accurate reading data
2,Domestic first using carbon fiber beam (has applied for patent), the impact on the direction, improve the rigidity of materials, and will impact the quality of concentrated in the largest pendulum on the center of mass of truly no vibration impact test, and increase the service life.
3,Imported high resolution digital encoder, Angle test precision is higher and more stable
4,Aerodynamic impact hammer and imported ball bearing, greatly reduced the mechanical friction loss
5,Automatically calculate the final result, test data can be stored and averaging 12 groups of data
6,can choose Chinese and English operation interface, test results can choose J/m, KJ / , kg - cm/cm, ft - ib/in etc
7,Built-in miniature printer test data.

3 Test standard

 ISO179-2000 "plastics - determination of impact strength of the simply supported beam with hard material,
 GB/T1043-2008 "the hard plastic beam impact test method"
 JB/T8762-1998 plastic beam impact testing machine,
 the GB/T 18743-18743 "with thermoplastic fluid conveying pipe beam impact test method" (applicable to pipe)

4 Specifications

Ø Display mode: color touch screen (both in English and Chinese)

Brand and precision Angle sensor: imported from omron encoder, precision to 0.01 °

Ø Energy display precision: 0.01 J

Ø Impact speed: 2.9 m/s

Ø Pendulum to sample center distance: 230 mm pendulum Yang Angle: 150 °

Ø Jaw bearing spacing: 40 mm, 60 mm, 70 mm, 95 mm

Ø Bearing blade radius: R = 1 mm

Ø Impact blade Angle: 30 °

Ø Impact blade radius: R = 2 mm + / - 0.5 mm

5 Specifications choice

Model

LR-A003-5D

LR-A003-15D

LR-A003-50D

pendulum energy

1J,2J,4J,5J

7.5J,15J

  25J,50J

Pendulum pre elevation

150°

Impact speed

2.9M/S

3.8M/S

6.Accessories list



Name

Qty

Unit

Remark

Main engine

Impact Tester

1

Set



Accessory kit

The toolkit

1

Pcs



1JPendulum impact

1

Pcs

LR-A003-5

2J Impact weight

1

Pair

LR-A003-5

4J Impact weight

1

Pair

5J Impact weight

1

Pair

Sample jig for simple support beam

1

Set

Combined in machine stand

Wrench

1

Set



Printer

1

Pcs

Combined in machine stand

Print paper

2

Roll



Digital Plastic Test Machine Hard And Glass Fiber Reinforced Plastic Impact Tester 0
