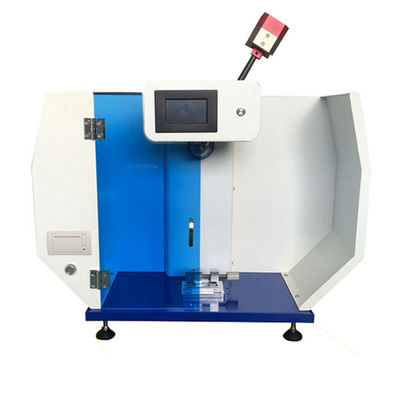

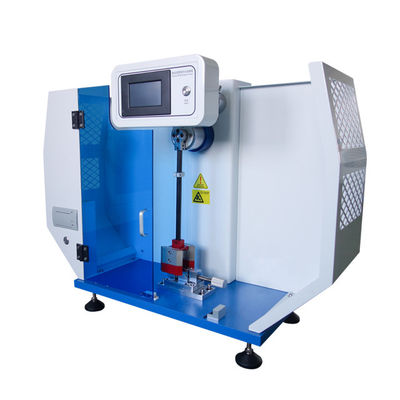

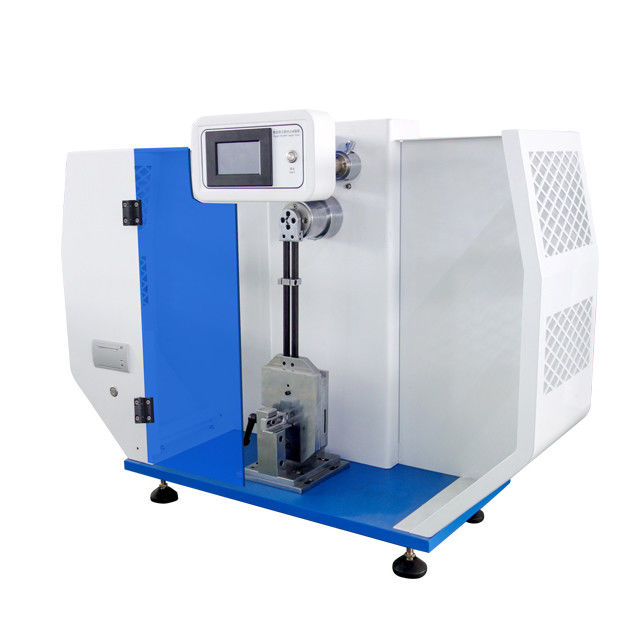

ASTM D256 Plastic Test Machine Toughness IZOD Impact Tester

IZOD Impact Tester Toughness Impact Test for Plastic ISO180

1. Uses

This impact tester is used to test impact toughness of hard plastic,GFPA,glass fiber reinforced plastics,ceramics, cast stone,electrical insulating materialand other non-metal material.It's a ideal testing equipments in chemical industry,R＆D institution,quality controlling dept.

2. Character

1,intelligent controller has high precision, and is equipped with LCD display, can be intuitive, accurate reading data
2,domestic first using carbon fiber beam (has applied for patent), the impact on the direction, improve the rigidity of materials, and will impact the quality of concentrated in the largest pendulum on the center of mass of truly no vibration impact test, and increase the service life.
3,imported high resolution digital encoder, Angle test precision is higher and more stable
4,aerodynamic impact hammer and imported ball bearing, greatly reduced the mechanical friction loss
5,automatically calculate the final result, test data can be stored and averaging 12 groups of data
6,can choose Chinese and English operation interface, test results can choose J/m, KJ / ㎡, kg - cm/cm, ft - ib/in etc.
7,built-in miniature printer test data.

 3. Test standard

ISO180-2000 "plastics - determination of hard material cantilever beam impact strength
GB/T1843-2008 "hard plastic cantilever beam impact test method"
JB/T8761-1998 plastic cantilever beam impact testing machine,
ASTM D256-2010 "test method for determination of plastic the IZOD pendulum impact strength

 4.Specifications

 5.Specifications choice
