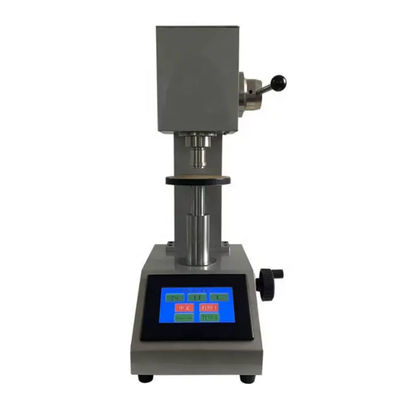

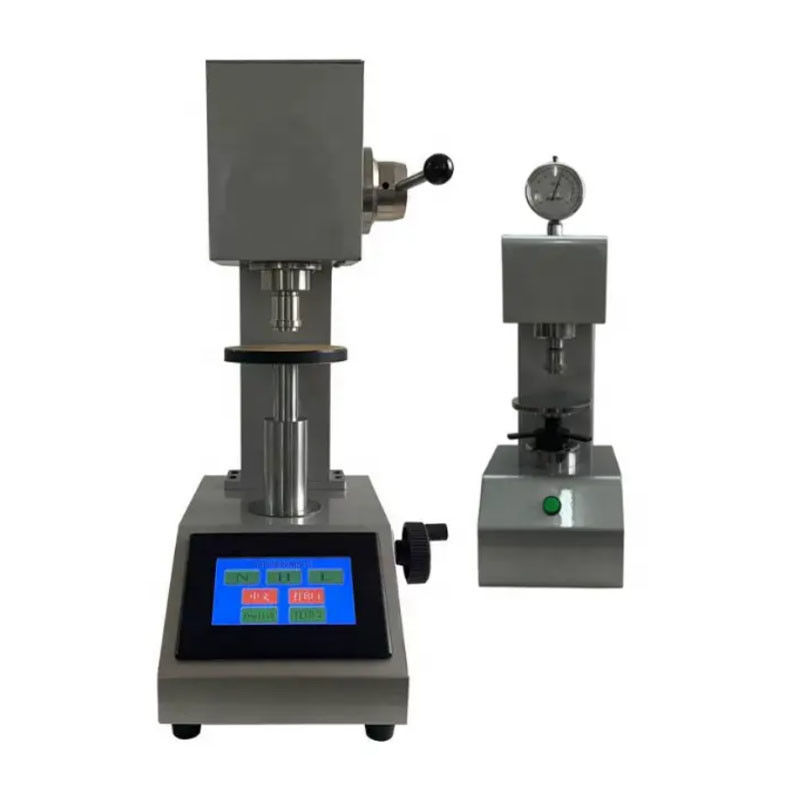

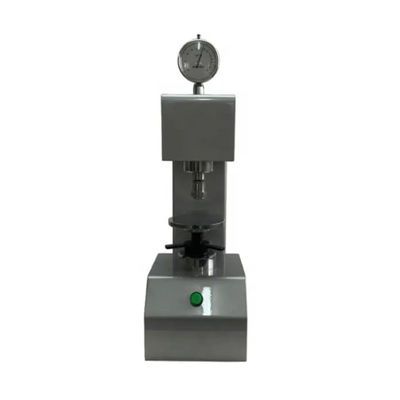

ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber

ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber
ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber

Large Image :  ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-RH2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C D/A D/P TAT Western Union
Supply Ability: 200 pieces
Contact Now

ISO 48 IRHD Hardness Tester For Vulcanized Rubber / Thermoplastic Rubber

Description
Volume: 180×150×400 (mm). Weight: 15Kg(including Packaging)
Current: 220V 52Hz Force On Foot: 8.3±1.5 (N)
Display Accuracy: 1IRHD (1 Degree Per Cell)
Highlight:

Vulcanized Rubber IRHD Hardness Tester

,

Thermoplastic Rubber IRHD Hardness Tester

ISO 48 IRHD Hardness Tester for Vulcanized Rubber Material

1. Product introduction
Applicable to the determination of the hardness of vulcanized rubber or thermoplastic rubber, and GB/T6031-2017 "Determination of the hardness of vulcanized rubber or thermoplastic rubber (10IRHD-100IRHD)" in the relevant provisions of the method N, the measurement of the conventional hardness of rubber test pieces, also in line with the provisions of ISO 48:2010 and other related standards.
2. Scope of application
Routine hardness testing of rubber and plastic products.
3. Standard
GB/T6031-2017
ISO 48:2010

4.Technical parameters

Spherical indenter
2.50±0.01 (mm).
Press
20±1 (mm). Press hole 6±1 (mm).
Press hole
6±1 (mm)
Contact force
0.30±0.02 (N)
Pressing force
5.40±0.01 (N)
Total force
5.70±0.03 (N)
Force on foot
8.3±1.5 (N)
Value range
28-100 (IRHD).
Effective test range
30-85 (IRHD).
Display accuracy
1IRHD (1 degree per cell).
Sample thickness
8mm-10mm, can be achieved by stacking, each layer is not less than 2mm.
Current
220V52Hz.
Volume
180×150×400 (mm).
Weight
15Kg(including packaging)
