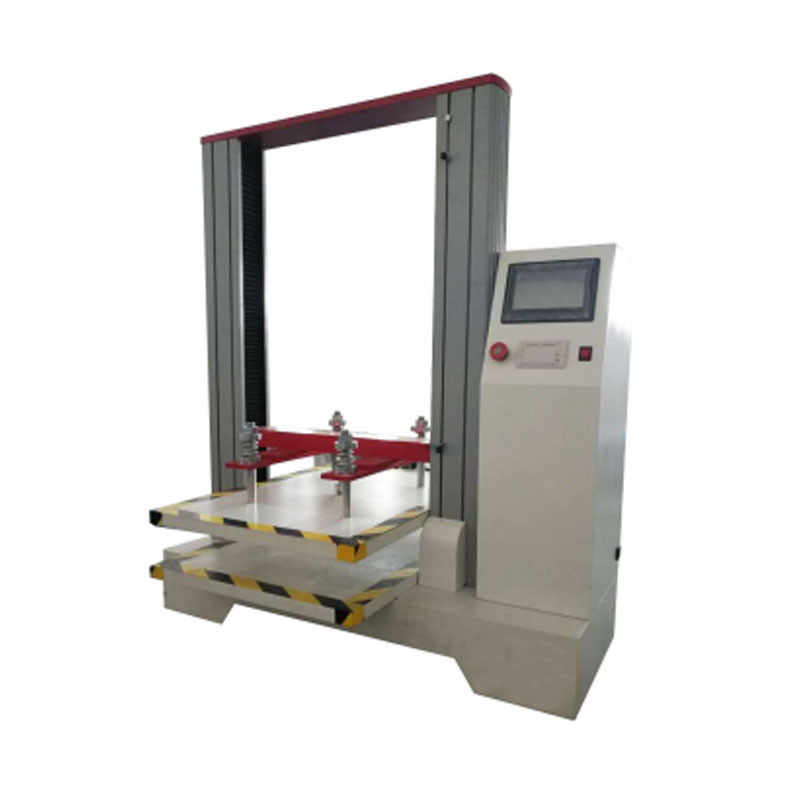

LCD Control Box Compression Tester Carton Box Compression Strength Tester ISO2872

ISO2872 LCD Control Box Compression Tester for Carton Strength

1. Scope of application

It is applicable to the compressive strength of corrugated carton and honeycomb carton, so as to prevent the product from deformation and damage in the process of using, handling, stacking, warehousing and transportation due to insufficient carton strength.Ideal testing and research equipment for factories, enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and colleges and universities

2. Meet the standards

1.ISO2872 "packing -- complete and full transport packaging -- pressure test",

2.ISO2874 "packing -- complete and full packing -- stacking test with pressure testing machine"

3.GB4857.4 "basic test pressure test method for transport packaging parts"

3. Technical Specification

Capacity: 2000 kg

Unit: kg.N. LB arbitrary switching

Test space: 1000mm long *1000mm wide *1000mm high

Force measurement accuracy:±1%

Force resolution: 1/100,000, sampling frequency 400 times/second;

Compression rate: 10±3mm/min

Display mode: touch screen display

Synchronous belt drive;No gap ball screw lifting, accurate and smooth

Peak test: can print test result, time and date

Power supply: AC220 ± 10%,1000W

Weight: about 450kg

Pulse output mode control stepless speed regulation;

For a single test, 10 points were counted manually and the average value was calculated automatically

Overload protection function can be set;

Various test methods such as fixed load and positioning and shifting.

4. Safety device:

1. Overload emergency stop device

2. Up and down stroke limit device
