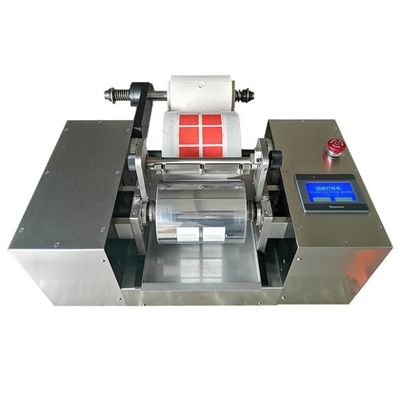

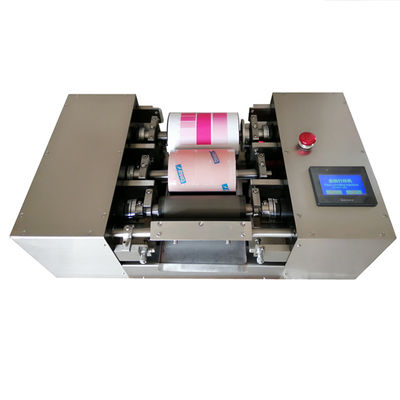

Four Color Printing Offset Ink Proofer Ink Printer 400W With 3 Gear Printing Speed

Four Color Printing Offset Ink Proofer Ink Printer

1. Character

1. Automatic ink leveling, stable operation, precision processing

2. Uniform ink time, the speed can be set

3. Printing pressure and speed can be adjusted, printing speed 3 gear: low, medium, high

4. Uniform ink speed: low, medium, high, 3 gears setting, each time can be proofing 4 colors

5. Suitable for printing offset ink spot color proofing, 4 primary color areas, 4 light color areas, easy to 6.compare colors, easy to use.

7. Use color measurement with spectrophotometer to detect ink color phase, dry and wet, gloss, Lab value.

2. Specification

3. Offset printing ink printer

1. Working conditions

1.1 operating environment, voltage, humidity and other technical requirements of the equipment

Under normal temperature working environment, the voltage is not higher than 220v.

2. Technical requirements and configuration

2.1 main functions

Press the ink on the paper substrate according to certain technical requirements to test the printing effect of the ink under different conditions.The printed color bar can be tested (such as gloss, color density, measurement color data LAB/CH value, contrast, etc.) to identify printing adaptability of ink, color difference of spot color or four-color ink, etc.

2.2 technical indicators:

Process

2.2.1 rubber roll material

Material can be used for ordinary offset printing ink and vegetable oil base ink

2.2.2 printing speed

The printing speed range is: high speed: 20 r/min, medium speed: 15r/min, low speed: 10r/min.

2.2.3 color bar size

Application size: 45X225mm

2.2.4 specification of embossed paper

It is best to print paper with thickness of 0~2.50 mm and plastic film with thickness of 1mm

2.2.5 steel roll speed

Cleaning: 100 RPM ~800 RPM;

Uniform ink: 100 RPM ~1000 RPM

The steady ink velocity: high speed: 1000r /min, medium speed: 800r/min, low speed: 650r/min.

2.3 configuration

In addition to the standard configuration, also need to match the corresponding computer and special cleaning agent

2.4 consumables

Paper, ink, plastic film
